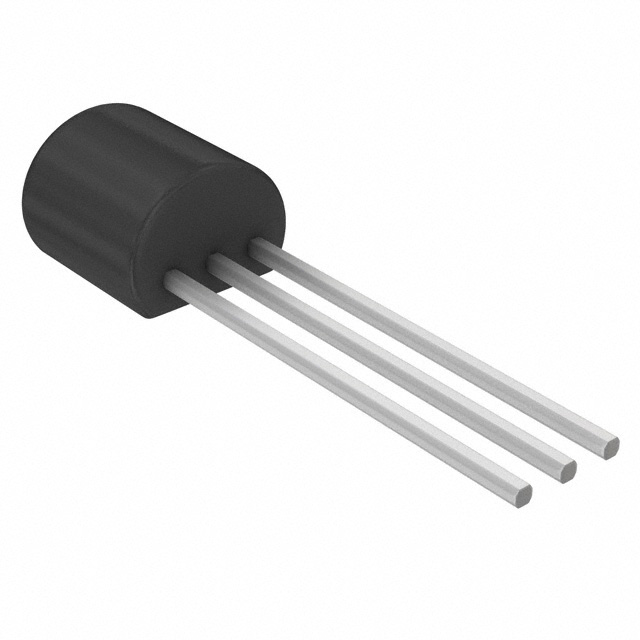

TL431AIZ

TL431AIZ

Part Number	TL431AIZ
Manufacturer	STMicroelectronics
Other Part Numbers	497-14723-ND TL431AIZ-ND 497-14723
Description	IC VREF SHUNT ADJ 1% TO92-3
Detailed Description	Shunt Voltage Reference IC Adjustable 2.495V 36 VV ±1% 100 mA TO-92-3
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Reference
Manufacturer		STMicroelectronics
Series
Packaging		Bulk
Part Status		Active
Tolerance		±1%
Package / Case		TO-226-3, TO-92-3 (TO-226AA) Formed Leads
Output Type		Adjustable
Mounting Type		Through Hole
Reference Type		Shunt
Operating Temperature		-40°C ~ 105°C (TA)
Supplier Device Package		TO-92-3
Voltage - Output (Min/Fixed)		2.495V
Current - Cathode		700 µA
Current - Output		100 mA
Voltage - Output (Max)		36 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		TL431AIZ
Datasheets		TL431 Datasheet

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 4546

Can ship immediately.
