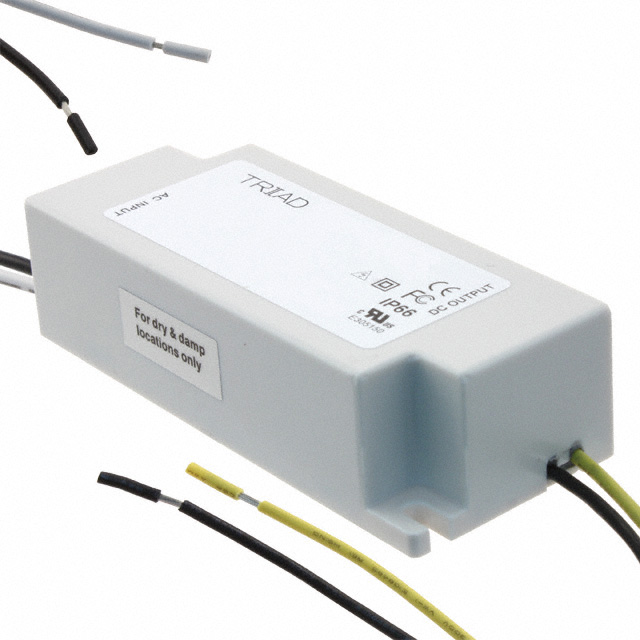

TLD1020-12 _ LED Drivers_Power Supplies - External/Internal (Off-Board)

Part Number	TLD1020-12
Manufacturer	Triad Magnetics
Other Part Numbers	237-1313-ND TLD102012 237-1313
Description	LED DRIVER CV AC/DC 12V 1.66A
Detailed Description	1.66A 12V Constant Voltage LED Driver AC DC Converter Topology 1 Output
Manufacturer Standard Lead Time	23 weeks
Datasheet	Datasheet

Category		Power Supplies - External/Internal (Off-Board) LED Drivers
Manufacturer		Triad Magnetics
Series		TLD1020
Packaging		Box
Part Status		Active
Features		OCP, OVP, SCP
Size / Dimension		3.74" L x 1.57" W x 0.98" H (95.0mm x 40.0mm x 25.0mm)
Voltage - Output		12V
Mounting Type		Chassis Mount
Type		Constant Voltage
Weight		0.265 lb (120.2 g)
Operating Temperature		-30°C ~ 60°C
Termination Style		Wire Leads
Voltage - Input (Max)		304VAC
Approval Agency		CE, cUL, UL
Ratings		IP66, NEMA 4
Efficiency		84%
Topology		AC DC Converter
Current - Output (Max)		1.66A
Voltage - Input (Min)		100VAC
Power (Watts)		20 W
Number of Outputs		1
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK
Datasheets		TLD1020-12
Datasheets		Standard Part Warranty Terms
Datasheets		RoHS Statement
Datasheets		TLD1020 Series Drawing

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9510
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
