TLP5214(E _ Isolators - Gate Drivers_Isolators

Part Number	TLP5214(E
Manufacturer	Toshiba Electronic Devices and Storage Corporation
Other Part Numbers	TLP5214(E-ND
Description	OPTOISO 5KV 1CH GATE DVR 16SO
Detailed Description	4A Gate Driver Optical Coupling 5000Vrms 1 Channel 16-SO
Manufacturer Standard Lead Time	36 weeks

Category		Isolators Isolators - Gate Drivers
Manufacturer		Toshiba Electronic Devices and Storage Corporation
Series
Packaging		Tube
Part Status		Active

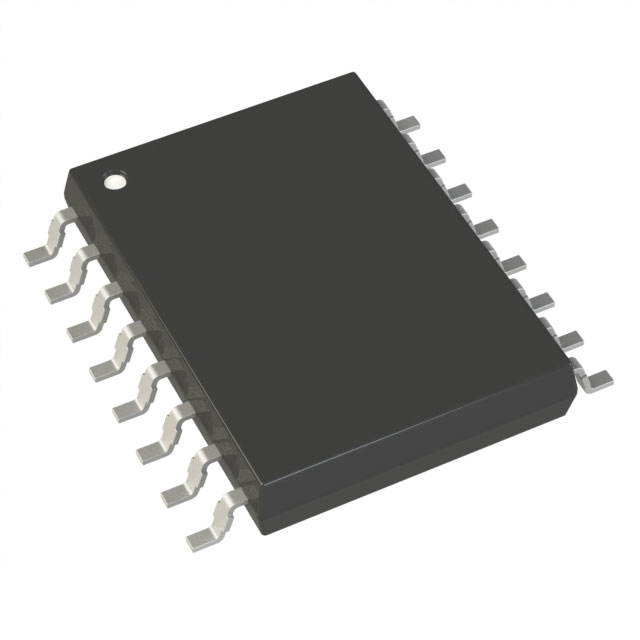

Package / Case		16-SOIC (0.295", 7.50mm Width)
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 110°C
Voltage - Forward (Vf) (Typ)		1.7V (Max)
Current - Peak Output		4A
Technology		Optical Coupling
Current - Output High, Low		3A, 3A
Voltage - Isolation		5000Vrms
Approval Agency		CQC, cUR, UR, VDE
Supplier Device Package		16-SO
Rise / Fall Time (Typ)		32ns, 18ns
Common Mode Transient Immunity (Min)		35kV/µs
Propagation Delay tpLH / tpHL (Max)		150ns, 150ns
Pulse Width Distortion (Max)		50ns
Number of Channels		1
Current - DC Forward (If) (Max)		25 mA
Voltage - Output Supply		15V ~ 30V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

Can ship immediately.

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Tube	1	$7.94	$7.94
Total Amount: $7.94
