TMPA 2313SP-2R2MN-D

Part Number
TMPA 2313SP-2R2MN-D
Manufacturer TAI-TECH
Other Part Numbers
4816-TMPA2313SP-2R2MN-DTR-ND
4816-TMPA2313SP-2R2MN-DCT-ND
4816-TMPA2313SP-2R2MN-DDKR-ND
4816-TMPA2313SP-2R2MN-DDKR
4816-TMPA2313SP-2R2MN-DCT
4816-TMPA2313SP-2R2MN-DTR

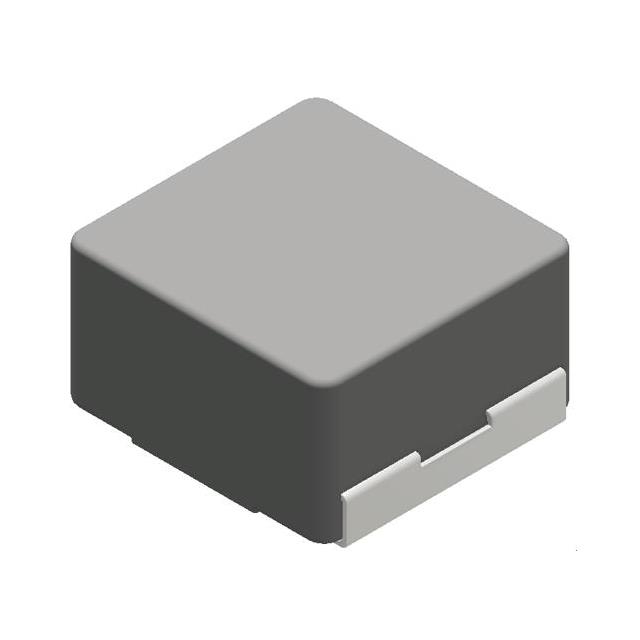

Description 2.2 UH SHIELDED MOLDED INDUCTOR
Detailed Description 2.2 µH Shielded Molded Inductor 52 A 1.25mOhm Max Nonstandard
Manufacturer Standard Lead Time 12 weeks

Product Attributes

Category
Manufacturer TAI-TECH
Series
TMPA2313SP
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.925" L x 0.866" W (23.50mm x 22.00mm)
Mounting Type Surface Mount
Shielding Shielded
Type Molded
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 1.25mOhm Max
Current - Saturation (Isat) 43A
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 0.512" (13.00mm)
Inductance 2.2 µH
Current Rating (Amps) 52 A

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS Compliant

In Stock: 158

Can ship immediately.
