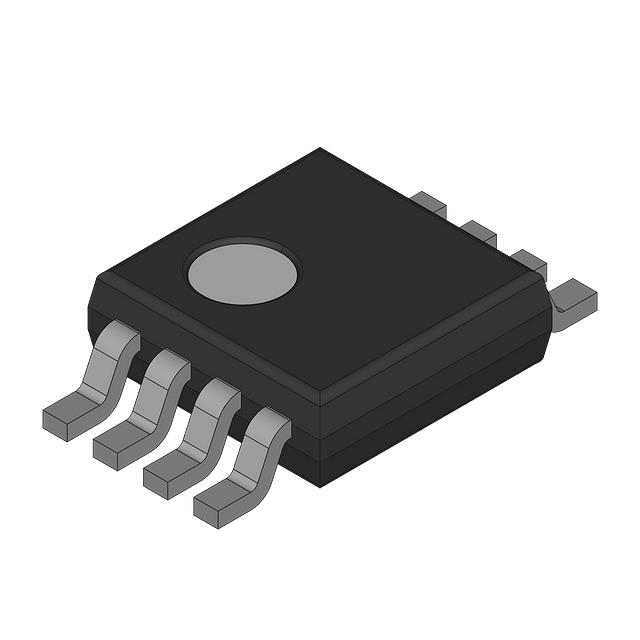

TPA102DGN

Part Number
TPA102DGN
Manufacturer Burr Brown
Other Part Numbers
2156-TPA102DGN-ND
2156-TPA102DGN
TEXTISTPA102DGN
Description TPA102 150-MW STEREO AUDIO POWER
Detailed Description Amplifier IC Headphones, 2-Channel (Stereo) Class AB 8-MSOP-PowerPad
Datasheet Datasheet

Product Attributes

Category
Manufacturer Burr Brown
Series
Packaging
Bulk
Part Status Active
Features Depop, Short-Circuit and Thermal Protection, Shutdown
Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Output Type Headphones, 2-Channel (Stereo)
Mounting Type Surface Mount
Type Class AB
Operating Temperature -40°C ~ 85°C (TA)
Voltage - Supply 2.5V ~ 5.5V
Max Output Power x Channels @ Load 70mW x 2 @ 8Ohm
Supplier Device Package 8-MSOP-PowerPad

Documents & Media

RESOURCE TYPE LINK
Datasheets TPA102DGN

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.33.0001

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
