TR/3216TD12-R

TR/3216TD12-R

Part Number
TR/3216TD12-R
Manufacturer PowerStor (Eaton)
Other Part Numbers
283-2805-2-ND
283-2805-1-ND
283-2805-6-ND
283-2805-2
TR/3216TD12R
283-2805-6
TR-3216TD12-R
283-2805-1
3216TD12-R

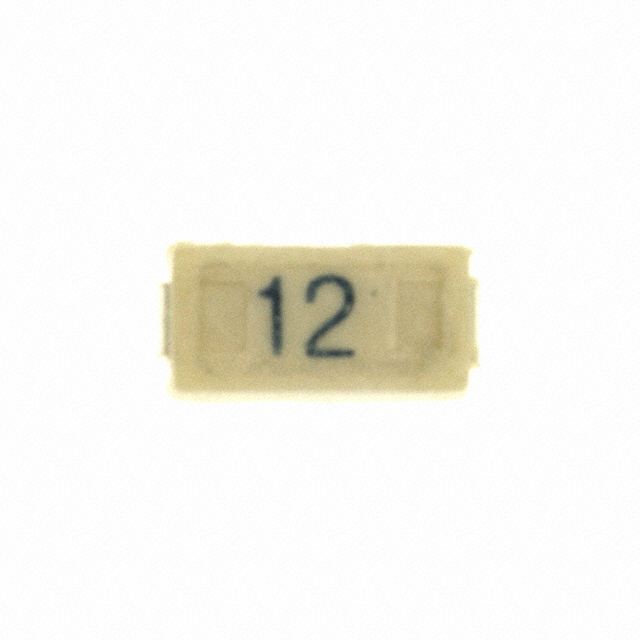

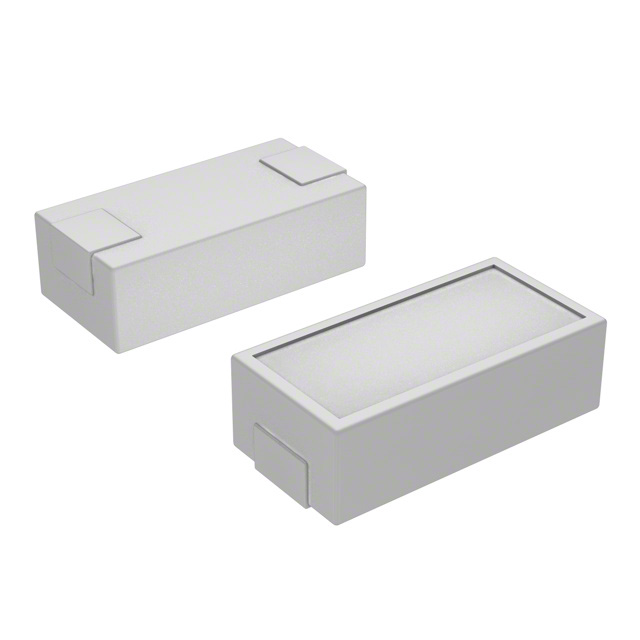

Description FUSE BRD MNT 12A 32VAC/VDC 1206
Detailed Description 12 A 32 V AC 32 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
Manufacturer Standard Lead Time 13 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer PowerStor (Eaton)
Series
CHIP 3216TD
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Package / Case 1206 (3216 Metric)

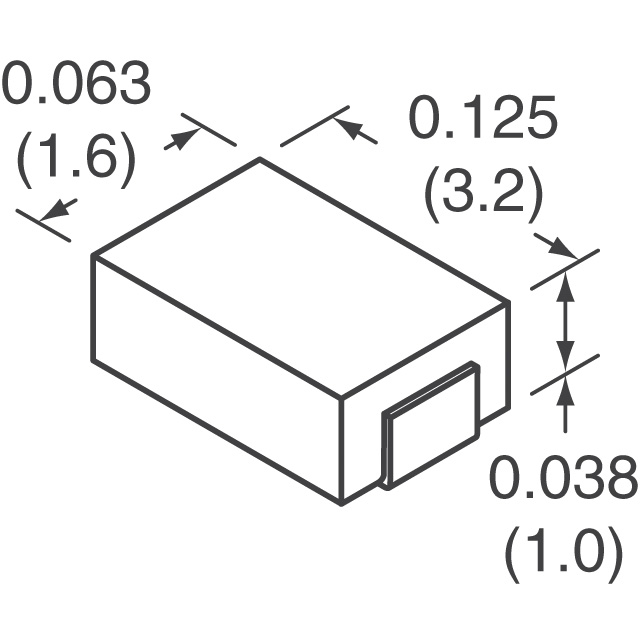

Size / Dimension 0.126" L x 0.063" W x 0.039" H (3.20mm x 1.60mm x 1.00mm)
Fuse Type Board Mount (Cartridge Style Excluded)
Mounting Type Surface Mount
Operating Temperature -55°C ~ 125°C
Response Time Slow Blow
Approval Agency cULus
DC Cold Resistance 0.005 Ohms
Breaking Capacity @ Rated Voltage 35A
Current Rating (Amps) 12 A
Voltage Rating - AC 32 V
Voltage Rating - DC 32 V
Melting I²t 64

Documents & Media

RESOURCE TYPE LINK
Datasheets TR/3216TD12-R
Datasheets 3216TD Family
Datasheets Shipping Box and Labels 05/Jan/2018
Datasheets 3216TD-R Series

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.10.0040
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 1309

Can ship immediately.
