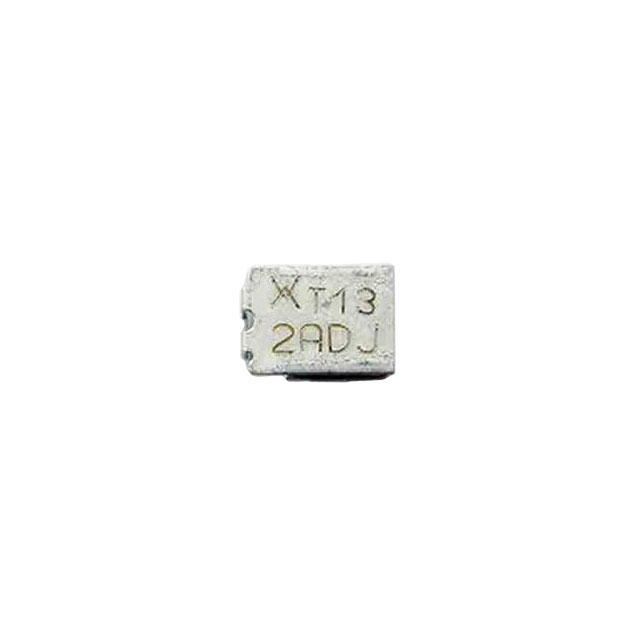

TS250-130F-B-0.5-2 _ PTC Resettable Fuses_Circuit Protection_

+86-0755-8325-4547

TS250-130F-B-0.5-2

TS250-130F-B-0.5-2

Part Number	TS250-130F-B-0.5-2
Manufacturer	Wickmann / Littelfuse
Other Part Numbers	18-TS250-130F-B-0.5-2TR-ND 18-TS250-130F-B-0.5-2CT-ND 18-TS250-130F-B-0.5-2CT -1024-TS250-130F-B-0.5-2CT A13328-000 18-TS250-130F-B-0.5-2TR
Description	PPTC-TLINE-PSW
Detailed Description	Polymeric PTC Resettable Fuse 60V (600V Int) 130 mA Ih Surface Mount 2-SMD
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Product Attributes

Category		Circuit Protection PTC Resettable Fuses
Manufacturer		Wickmann / Littelfuse
Series		TS
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		2-SMD
Size / Dimension		0.352" L x 0.291" W (8.95mm x 7.40mm)
Mounting Type		Surface Mount
Type		Polymeric
Operating Temperature		-40°C ~ 85°C
Approval Agency		CSA, TUV, UR
Current - Hold (Ih) (Max)		130 mA
Current - Trip (It)		260 mA
Voltage - Max		60V (600V Int)
Thickness (Max)		0.134" (3.40mm)
Current - Max		3 A
Time to Trip		900 ms
Resistance - Initial (Ri) (Min)		6.5 Ohms
Resistance - Post Trip (R1) (Max)		20 Ohms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		TS250-130F-B-0.5-2

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8533.40.8070
Moisture Sensitivity Level (MSL)		1 (Unlimited)

In Stock: 14928

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$1.29	$1.29
Total Amount: $1.29

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
1,500	$0.57	$855.00
3,000	$0.55	$1,650.00
7,500	$0.53	$3,975.00
10,500	$0.51	$5,355.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$1.29	$1.29
5	$1.25	$6.25
10	$1.17	$11.70
50	$0.97	$48.50
100	$0.81	$81.00
250	$0.79	$197.50
500	$0.67	$335.00
