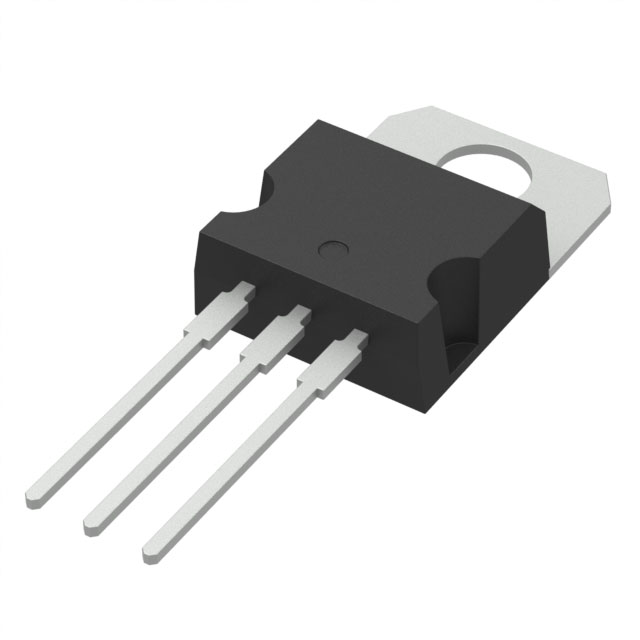

TYN1012RG

TYN1012RG

Part Number	TYN1012RG
Manufacturer	STMicroelectronics
Other Part Numbers	497-6782-5-ND TYN1012RG-ND 497-6782-5
Description	SCR 1KV 12A TO220AB
Detailed Description	SCR 1 kV 12 A Standard Recovery Through Hole TO-220
Manufacturer Standard Lead Time	15 weeks
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Thyristors SCRs
Manufacturer		STMicroelectronics
Series
Packaging		Tube
Part Status		Active
Package / Case		TO-220-3
Mounting Type		Through Hole
SCR Type		Standard Recovery
Operating Temperature		-40°C ~ 125°C
Current - Hold (Ih) (Max)		30 mA
Current - Gate Trigger (Igt) (Max)		15 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)		140A, 145A
Current - On State (It (AV)) (Max)		8 A
Voltage - Gate Trigger (Vgt) (Max)		1.3 V
Voltage - On State (Vtm) (Max)		1.6 V
Current - Off State (Max)		5 µA
Supplier Device Package		TO-220
Current - On State (It (RMS)) (Max)		12 A
Voltage - Off State		1 kV

Documents & Media

RESOURCE TYPE		LINK
Datasheets		TYN1012RG

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.30.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 512

Can ship immediately.

Tube

QUANTITY	UNIT PRICE	EXT PRICE
1	$1.38	$1.38
50	$1.11	$55.50
100	$0.88	$88.00
500	$0.75	$375.00
1,000	$0.61	$610.00
2,000	$0.57	$1,140.00
5,000	$0.54	$2,700.00
10,000	$0.52	$5,200.00
