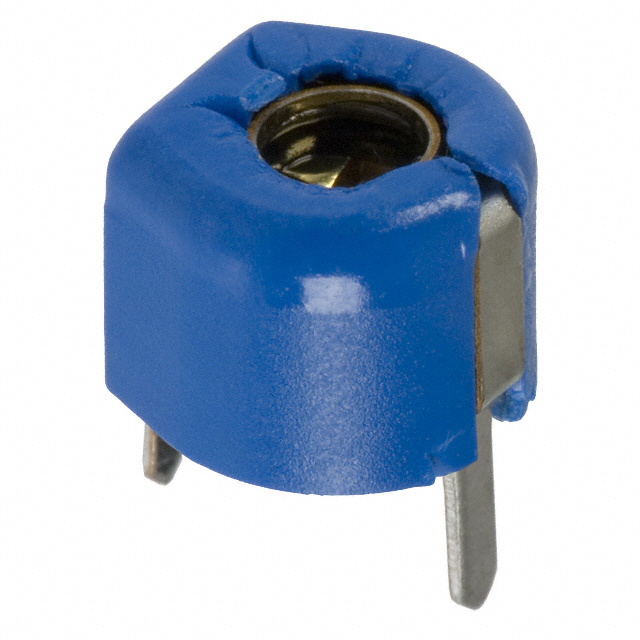

TZ03Z050E169B00

Part Number
TZ03Z050E169B00
Manufacturer TOKO / Murata
Other Part Numbers
490-1966-ND
490-1966
Description CAP TRIMMER 1.5-5PF 100V TH
Detailed Description 1.5 ~ 5pF Trimmer Capacitor 100 V Bottom Through Hole
Datasheet Datasheet

Product Attributes

Category
Manufacturer TOKO / Murata
Series
TZ03
Packaging
Bulk
Part Status Obsolete
Features General Purpose
Adjustment Type Bottom
Capacitance Range 1.5 ~ 5pF
Size / Dimension 0.236" Dia (6.00mm)
Mounting Type Through Hole
Operating Temperature -25°C ~ 85°C
Q @ Freq 500 @ 1MHz
Dielectric Material Ceramic
Height - Seated (Max) 0.209" (5.30mm)
Voltage - Rated 100 V

Documents & Media

RESOURCE TYPE LINK
Datasheets TZ03Z050E169B00

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8532.30.0090
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected

Obsolete

This product is no longer manufactured.
