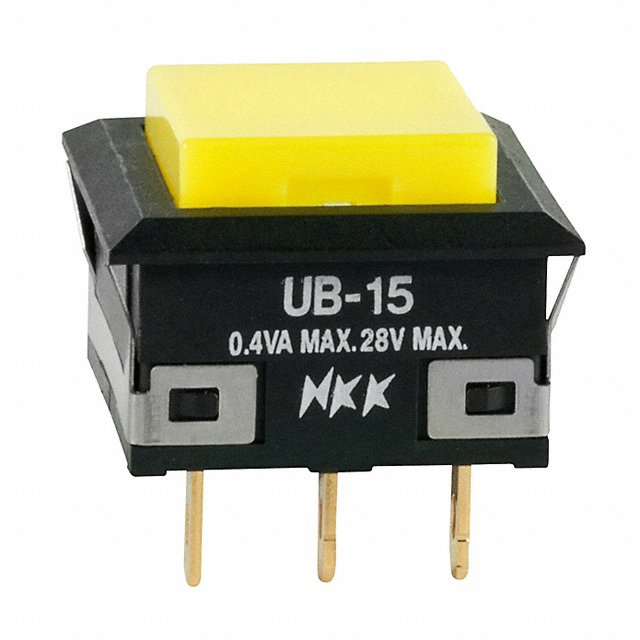

UB15KKG01N-E

UB15KKG01N-E

Part Number	UB15KKG01N-E
Manufacturer	NKK Switches
Other Part Numbers	UB15KKG01N-E-ND 3937-UB15KKG01N-E
Description	SWITCH PUSH SPDT 0.4VA 28V
Detailed Description	Pushbutton Switch SPDT Standard Panel Mount, Snap-In
Manufacturer Standard Lead Time	22 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches Pushbutton Switches
Manufacturer		NKK Switches
Series		UB
Packaging		Tray
Part Status		Active
Features		Overtravel
Current Rating (Amps)		0.4VA (AC/DC)
Mounting Type		Panel Mount, Snap-In
Circuit		SPDT
Type		Standard
Switch Function		On-Mom
Operating Temperature		-20°C ~ 70°C
Termination Style		Solder Lug
Actuator Type		Square, Button
Panel Cutout Dimensions		Square - 16.20mm x 16.20mm
Color - Actuator/Cap		Yellow
Actuator Marking		No Marking
Voltage Rating - AC		28 V
Voltage Rating - DC		28 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		UB15KKG01N-E
Datasheets		NKK Switches ODC Cert
Datasheets		RoHS Cert - Switches & Pushbuttons
Datasheets		NKK Switches PFOS & PFOA Free Cert
Datasheets		LB.UB,UB2 Series 31/Mar/2016

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.50.9031
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 31

Can ship immediately.
