UC3708DW

Part Number
UC3708DW
Manufacturer Texas Instruments
Other Part Numbers
296-2514-5-ND
-UC3708DWG4
TEXTISUC3708DW
2156-UC3708DW
-UC3708DWG4-NDR
-UC3708DW-NDR
296-2514-5
-296-2514-5
296-2514-5-NDR
-296-2514-5-ND
Description IC GATE DRVR LOW-SIDE 16SOIC
Detailed Description Low-Side Gate Driver IC Non-Inverting 16-SOIC
Manufacturer Standard Lead Time 12 weeks

Product Attributes

Category
Manufacturer Texas Instruments
Series
Packaging
Tube
Part Status Active

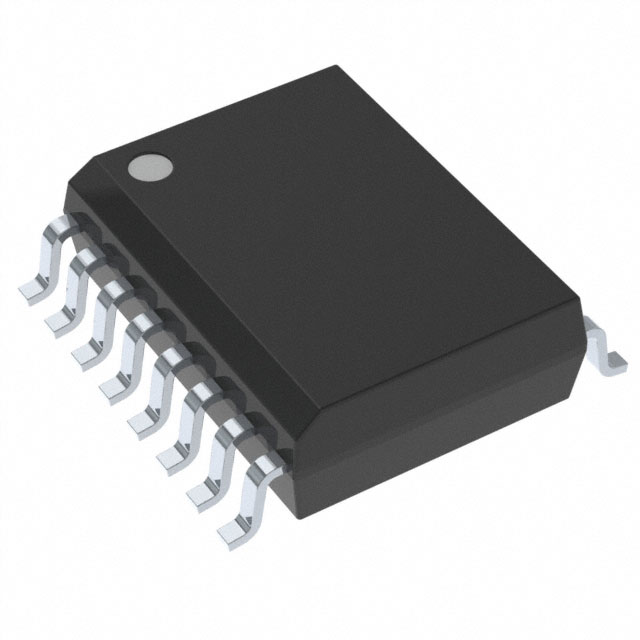

Package / Case 16-SOIC (0.295", 7.50mm Width)
Mounting Type Surface Mount
Operating Temperature 0°C ~ 70°C (TA)
Voltage - Supply 5V ~ 35V
Input Type Non-Inverting
Supplier Device Package 16-SOIC
Rise / Fall Time (Typ) 25ns, 25ns
Channel Type Independent
Driven Configuration Low-Side
Number of Drivers 2
Gate Type N-Channel, P-Channel MOSFET
Logic Voltage - VIL, VIH 0.8V, 2V
Current - Peak Output (Source, Sink) 3A, 3A
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 24

Can ship immediately.
