UC3709N

Part Number
UC3709N
Manufacturer Texas Instruments
Other Part Numbers
296-11245-5-ND
-UC3709N-NDR
-296-11245-5-ND
-UC3709NG4-NDR
-296-11245-5
-UC3709NG4
296-11245-5
Description IC GATE DRVR LOW-SIDE 8DIP
Detailed Description Low-Side Gate Driver IC Inverting 8-PDIP
Manufacturer Standard Lead Time 12 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Texas Instruments
Series
Packaging
Tube
Part Status Active

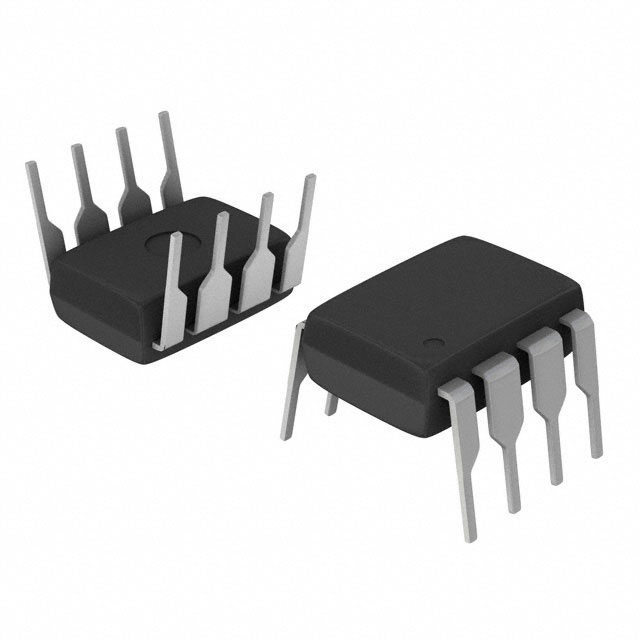

Package / Case 8-DIP (0.300", 7.62mm)
Mounting Type Through Hole
Operating Temperature 0°C ~ 70°C (TA)
Voltage - Supply 5V ~ 40V
Input Type Inverting
Supplier Device Package 8-PDIP
Rise / Fall Time (Typ) 20ns, 20ns
Channel Type Independent
Driven Configuration Low-Side
Number of Drivers 2
Gate Type N-Channel, P-Channel MOSFET
Logic Voltage - VIL, VIH 0.8V, 2.2V
Current - Peak Output (Source, Sink) 1.5A, 1.5A
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK
Datasheets Mult Dev 13/Apr/2023

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 150
