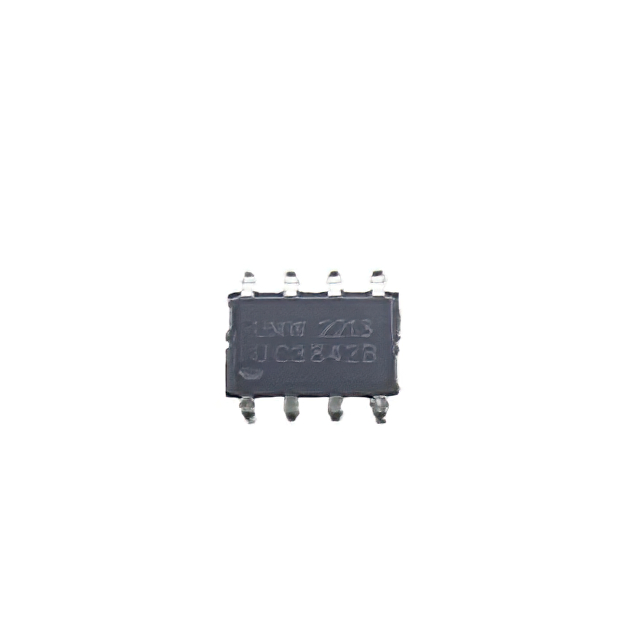

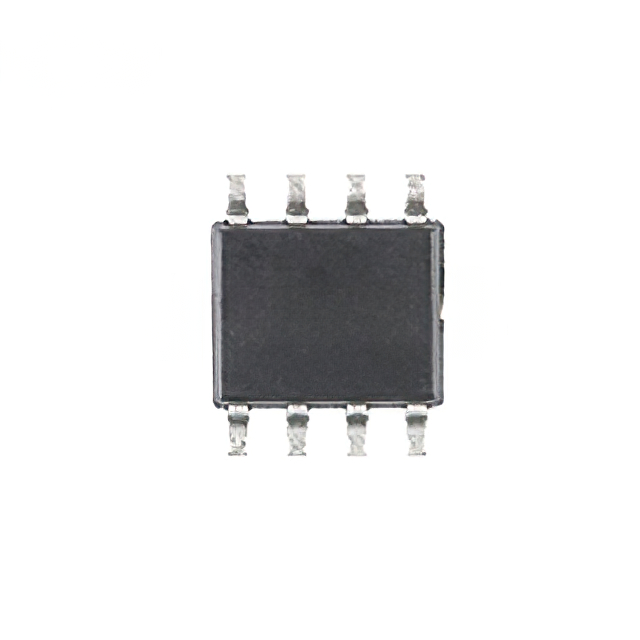

UC3842B

Part Number
UC3842B
Manufacturer UMW
Other Part Numbers
4518-UC3842BTR-ND
4518-UC3842BCT-ND
4518-UC3842BDKR-ND
4518-UMWUC3842BTR
4518-UC3842BCT
UMW UC3842B
4518-UC3842BTR
4518-UMWUC3842BTR-ND
4518-UC3842BDKR
Description SOP-8 AC-DC CONTROLLERS & REGULA
Detailed Description Boost, Flyback Regulator Output DC-DC Controller IC 8-SOP
Manufacturer Standard Lead Time 2 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer UMW
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Package / Case 8-SOIC (0.154", 3.90mm Width)
Output Type PWM
Mounting Type Surface Mount
Operating Temperature 0°C ~ 70°C (TA)
Frequency - Switching Up to 500kHz
Topology Boost, Flyback
Voltage - Supply (Vcc/Vdd) 10V ~ 30V
Supplier Device Package 8-SOP
Control Features Frequency Control, Soft Start
Duty Cycle (Max) 50%

Documents & Media

RESOURCE TYPE LINK
Datasheets UC3842B
Datasheets UTD REACH SGS 223 Jan 2022 Package

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0070
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 2262

Can ship immediately.
