UCC28502DW

Part Number
UCC28502DW
Manufacturer Unitrode
Other Part Numbers
2156-UCC28502DW-ND
2156-UCC28502DW
TEXUNIUCC28502DW
Description 1.2A, 120KHZ BICMOS, PDSO20
Detailed Description PFC IC Average Current 100kHz 20-SOIC

Product Attributes

Category
Manufacturer Unitrode
Series
Packaging
Bulk
Part Status Active

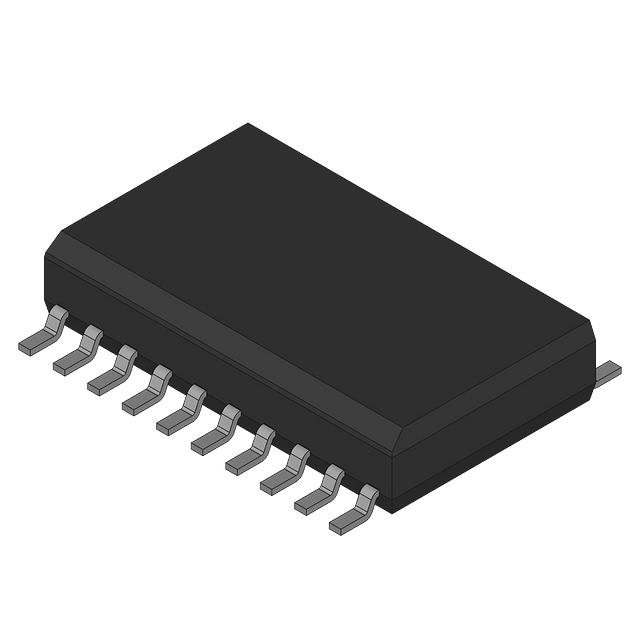

Package / Case 20-SOIC (0.295", 7.50mm Width)
Mounting Type Surface Mount
Operating Temperature -40°C ~ 85°C
Voltage - Supply 9.7V ~ 18V
Frequency - Switching 100kHz
Mode Average Current
Supplier Device Package 20-SOIC
Current - Startup 150 µA

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status Vendor Undefined
RoHS Status RoHS non-compliant

Available To Order
