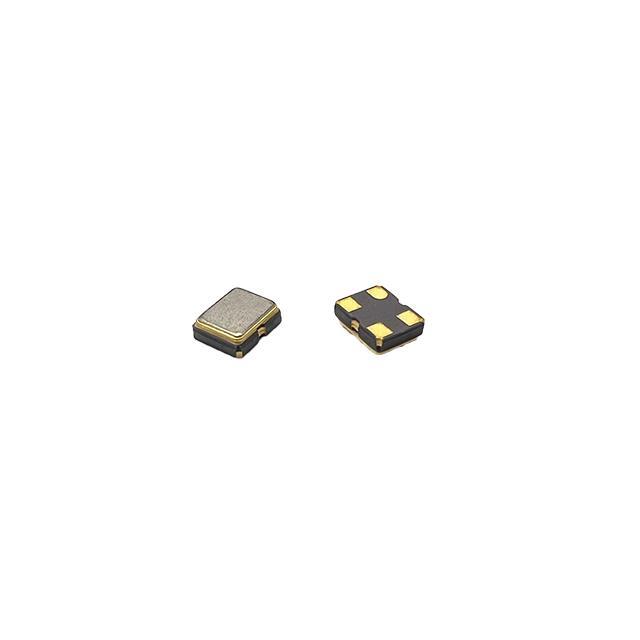

UCG4017019LK005000-38.4MDK

UCG4017019LK005000-38.4MDK

Part Number	UCG4017019LK005000-38.4MDK
Manufacturer	Pletronics, Inc
Other Part Numbers	4289-UCG4017019LK005000-38.4MDKTR-ND 4289-UCG4017019LK005000-38.4MDKTR
Description	TCXO OSCILLATORS 2016 4-SMD TCXO
Detailed Description	38.4 MHz TCXO Clipped Sine Wave Oscillator 1.8V Enable/Disable 4-SMD, No Lead Exposed Pad
Manufacturer Standard Lead Time	7 days
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		Pletronics, Inc
Series		UCG4
Packaging		Tape & Reel (TR)
Part Status		Active
Package / Case		4-SMD, No Lead Exposed Pad
Size / Dimension		0.079" L x 0.063" W (2.00mm x 1.60mm)
Mounting Type		Surface Mount
Output		Clipped Sine Wave
Function		Enable/Disable
Type		TCXO
Operating Temperature		-40°C ~ 85°C
Frequency Stability		0.5ppm
Voltage - Supply		1.8V
Current - Supply (Max)		3mA
Current - Supply (Disable) (Max)		0.23µA
Height - Seated (Max)		0.028" (0.70mm)
Frequency		38.4 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		UCG4017019LK005000-38.4MDK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
