UPSD3234BV-24U6

Part Number
UPSD3234BV-24U6
Manufacturer STMicroelectronics
Other Part Numbers
497-2373-ND
497-2373-NDR
497-2373
Description IC MCU 8BIT 288KB FLASH 80LQFP
Detailed Description 8032 µPSD Microcontroller IC 8-Bit 24MHz 288KB (288K x 8) FLASH

Product Attributes

Category
Manufacturer STMicroelectronics
Series
µPSD
Packaging
Tray
Part Status Obsolete

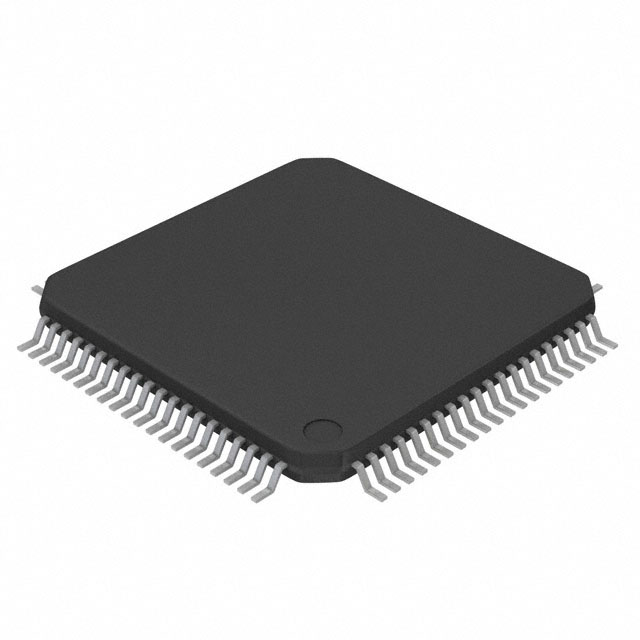

Package / Case 80-LQFP
Mounting Type Surface Mount
Speed 24MHz
Program Memory Size 288KB (288K x 8)
RAM Size 8K x 8
Operating Temperature -40°C ~ 85°C (TA)
Oscillator Type Internal
Program Memory Type FLASH
Core Processor 8032
Data Converters A/D 4x8b
Core Size 8-Bit
Voltage - Supply (Vcc/Vdd) 3V ~ 3.6V
Connectivity I2C, UART/USART
Peripherals LVR, POR, PWM, WDT
Number of I/O 46
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN 3A991A2
HTSUS 8542.31.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
