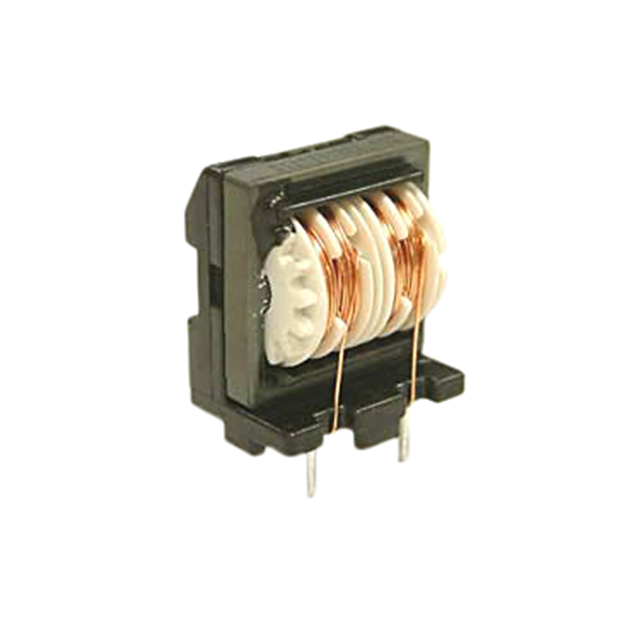

UT2024-006

UT2024-006

Part Number	UT2024-006
Manufacturer	Triad Magnetics
Other Part Numbers	UT2024-006-ND
Description	CMC 9MH 500MA 2LN TH ESD
Detailed Description	9 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 500mA DCR 1.4Ohm
Manufacturer Standard Lead Time	23 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters Common Mode Chokes
Manufacturer		Triad Magnetics
Series		UT
Packaging		Bulk
Part Status		Active
Package / Case		Horizontal, 4 PC Pin
Filter Type		Power Line
Size / Dimension		0.728" L x 0.905" W (18.49mm x 22.99mm)
Mounting Type		Through Hole
Number of Lines		2
Operating Temperature		-20°C ~ 105°C
Approval Agency		CSA, IEC, UL
Height (Max)		0.925" (23.50mm)
Voltage Rating - AC		250V
Current Rating (Max)		500mA
DC Resistance (DCR) (Max)		1.4Ohm
Inductance @ Frequency		9 mH @ 10 kHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		UT2024-006
Datasheets		Standard Part Warranty Terms
Datasheets		RoHS Statement

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.4035
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
