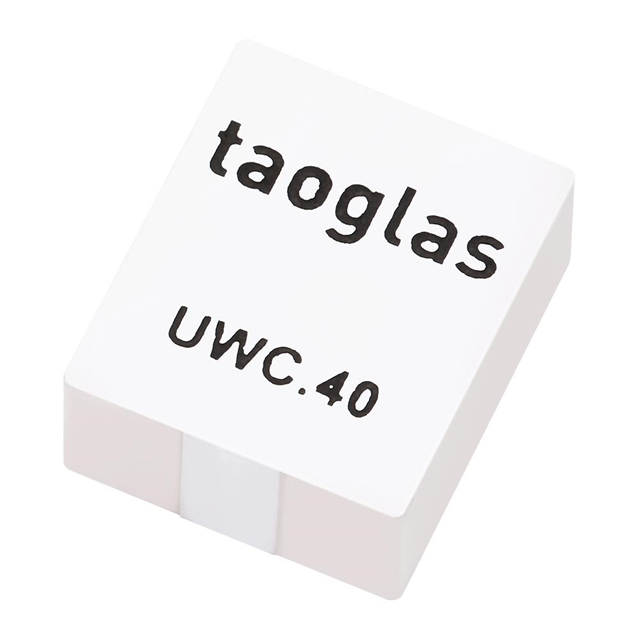

UWC.40

UWC.40

Part Number	UWC.40
Manufacturer	Taoglas
Other Part Numbers	931-UWC.40TR-ND 931-UWC.40CT-ND 931-UWC.40DKR-ND 931-UWC.40TR 2266-UWC.40 931-UWC.40CT 931-UWC.40DKR
Description	3~5GHZ ULTRA-WIDE BAND (UWB) SMD
Detailed Description	3.49GHz, 3.985GHz, 3.99GHz, 4.49GHz General Purpose Chip RF Antenna 3.1GHz ~ 4.75GHz 3.5dBi, 4.5dBi, 4dBi, 4dBi Solder Surface Mount
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		Taoglas
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Mounting Type		Surface Mount
Frequency Range		3.1GHz ~ 4.75GHz
Applications		General Purpose
Gain		3.5dBi, 4.5dBi, 4dBi, 4dBi
Termination		Solder
Number of Bands		4
VSWR		2.5, 2.8, 3.8, 2.8
Antenna Type		Chip
Height (Max)		0.118" (3.00mm)
Return Loss		-7.5dB, -6.5dB, -5dB, -5dB
Frequency Group		UHF (3GHz ~ 4GHz), SHF (f > 4GHz)
Frequency (Center/Band)		3.49GHz, 3.985GHz, 3.99GHz, 4.49GHz
Power - Max		10 W

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Taoglas Limited RoHS

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8529.10.9100
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1953

Can ship immediately.
