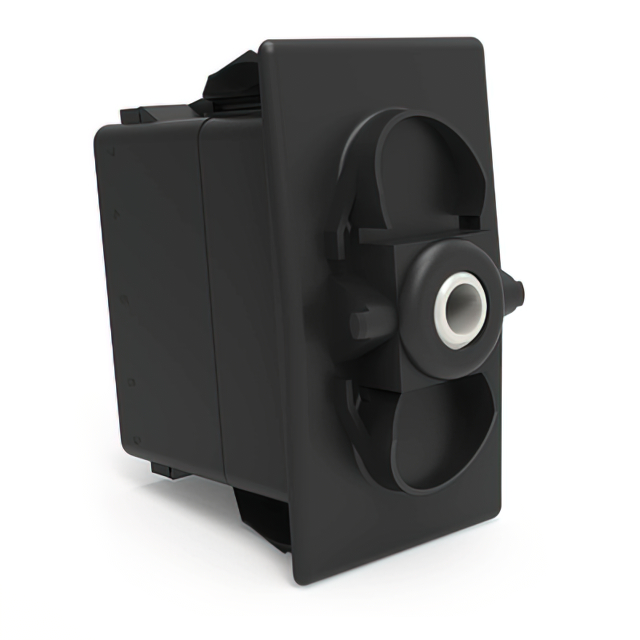

VLD2S00B-00000-000

VLD2S00B-00000-000

Part Number	VLD2S00B-00000-000
Manufacturer	Littelfuse / Carling Technologies
Other Part Numbers	432-VLD2S00B-00000-000-ND V851S00C00000000 RCV-00010867 VLD2S00B00000000 432-VLD2S00B-00000-000
Description	SWITCH ROCKER DPDT 20A 12V
Detailed Description	Rocker Switch DPDT 20A (DC) Panel Mount, Snap-In
Manufacturer Standard Lead Time	8 weeks

Product Attributes

Category		Switches Rocker Switches
Manufacturer		Littelfuse / Carling Technologies
Series		Contura® V
Packaging		Bulk
Part Status		Active
Current Rating (Amps)		20A (DC)
Mounting Type		Panel Mount, Snap-In
Circuit		DPDT
Switch Function		Mom-Off-Mom
Operating Temperature		-40°C ~ 85°C
Termination Style		Quick Connect - 0.250" (6.3mm)
Actuator Type		Actuator Arm, Cap Required
Approval Agency		CSA, UL, VDE
Ingress Protection		IP66/IP68 - Dust Tight, Water Resistant, Waterproof
Panel Cutout Dimensions		Rectangular - 36.83mm x 21.08mm
Actuator Marking		Varies by Cap
Voltage Rating - DC		12 V

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9065
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 70

Can ship immediately.
