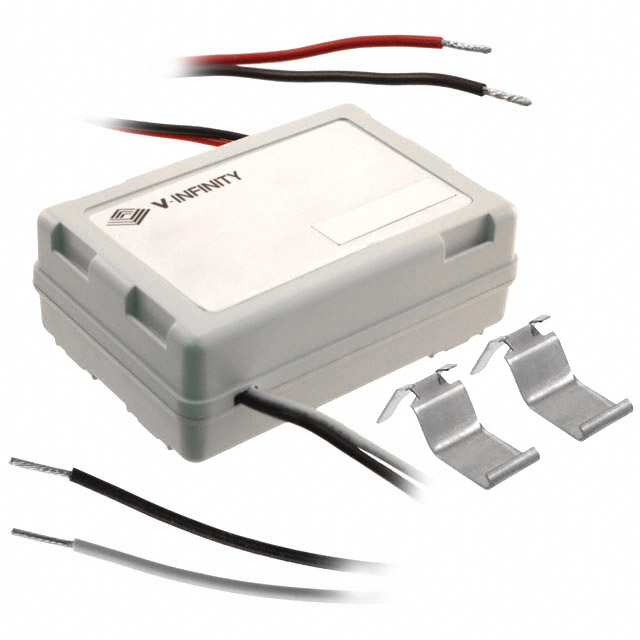

VLED15-120-1400

Part Number
VLED15-120-1400
Manufacturer CUI Inc
Other Part Numbers
102-2236-ND
655-00214R
102-2236
VLED151201400
1462-VLED15-120-1400
Description LED DRIVER CC AC/DC 8-11.5V
Detailed Description 1.4A 8 ~ 11.5V Constant Current LED Driver AC DC Converter Topology 1 Output
Datasheet Datasheet

Product Attributes

Category
Manufacturer CUI Inc
Series
VLED15
Packaging
Box
Part Status Obsolete
Features OCP, OTP, OVP, SCP
Size / Dimension 3.21" L x 2.21" W x 1.10" H (81.0mm x 56.0mm x 27.0mm)
Voltage - Output 8 ~ 11.5V
Mounting Type Chassis Mount
Type Constant Current
Operating Temperature -30°C ~ 90°C
Termination Style Wire Leads
Voltage - Input (Max) 135VAC
Approval Agency CE, ENEC, UL
Topology AC DC Converter
Current - Output (Max) 1.4A
Dimming ELV, Triac
Voltage - Input (Min) 90VAC
Power (Watts) 16 W
Number of Outputs 1
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK
Datasheets VLED15-120-1400
Datasheets VLED, PLDA, PLDS Series 24/Jan/2018

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.40.9580
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status RoHS Compliant

Obsolete

This product is no longer manufactured.
