VN0300L _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	VN0300L
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	VN0300LOS-ND VN0300LOS
Description	MOSFET N-CH 60V 200MA TO92-3
Detailed Description	N-Channel 60 V 200mA (Ta) 350mW (Tc) Through Hole TO-92 (TO-226)
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Sanyo Semiconductor/onsemi
Series
Packaging		Tape & Box (TB)
Part Status		Obsolete

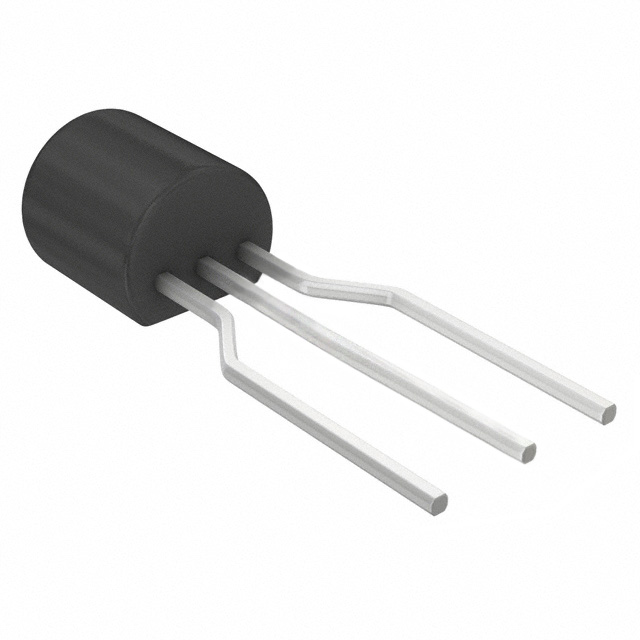

Package / Case		TO-226-3, TO-92-3 Long Body (Formed Leads)
Mounting Type		Through Hole
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		200mA (Ta)
Rds On (Max) @ Id, Vgs		1.2Ohm @ 1A, 10V
Power Dissipation (Max)		350mW (Tc)
Vgs(th) (Max) @ Id		2.5V @ 1mA
Supplier Device Package		TO-92 (TO-226)
Drive Voltage (Max Rds On, Min Rds On)		5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		60 V
Input Capacitance (Ciss) (Max) @ Vds		100 pF @ 15 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.21.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
