VO2631 _ Logic Output Optoisolators_Optoisolators_Isolators

Part Number	VO2631
Manufacturer	Vishay Semiconductor - Opto Division
Other Part Numbers	751-1381-5-ND VO2631-ND 751-1381-5
Description	OPTOISO 5.3KV 2CH OPN DRAIN 8DIP
Detailed Description	Logic Output Optoisolator 10MBd Open Drain 5300Vrms 2 Channel 5kV/µs CMTI 8-DIP
Manufacturer Standard Lead Time	26 weeks
Datasheet	Datasheet

Category		Isolators Optoisolators Logic Output Optoisolators
Manufacturer		Vishay Semiconductor - Opto Division
Series
Packaging		Tube
Part Status		Active

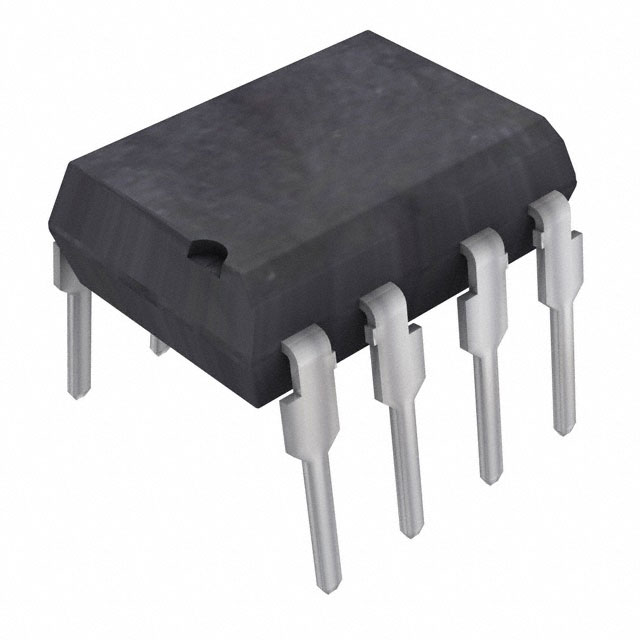

Package / Case		8-DIP (0.300", 7.62mm)
Output Type		Open Drain
Mounting Type		Through Hole
Operating Temperature		-40°C ~ 100°C
Voltage - Supply		4.5V ~ 5.5V
Voltage - Forward (Vf) (Typ)		1.42V
Data Rate		10MBd
Input Type		DC
Voltage - Isolation		5300Vrms
Current - DC Forward (If) (Max)		15mA
Inputs - Side 1/Side 2		2/0
Supplier Device Package		8-DIP
Rise / Fall Time (Typ)		23ns, 7ns
Common Mode Transient Immunity (Min)		5kV/µs
Propagation Delay tpLH / tpHL (Max)		100ns, 100ns
Number of Channels		2
Current - Output / Channel		50 mA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
