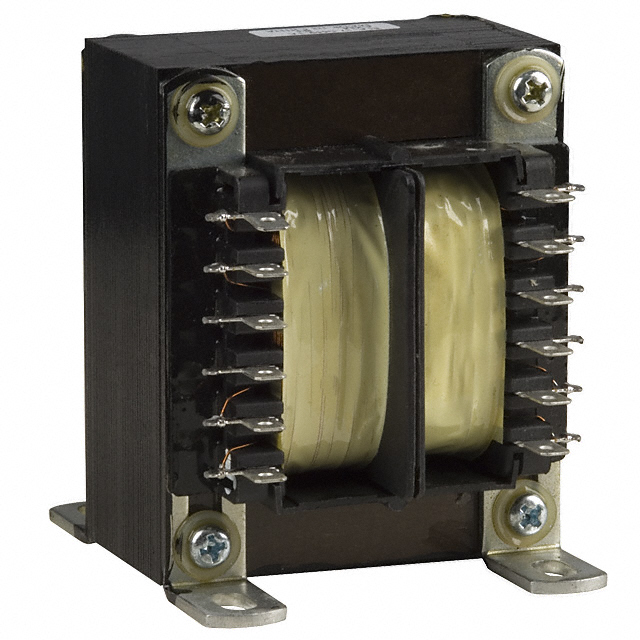

VPS10-17500

VPS10-17500

Part Number	VPS10-17500
Manufacturer	Triad Magnetics
Other Part Numbers	237-1250-ND VPS1017500 237-1250 2266-VPS10-17500
Description	PWR XFMR LAMINATED 175VA CHAS MT
Manufacturer Standard Lead Time	23 weeks
Datasheet	Datasheet

Product Attributes

Category		Transformers Power Transformers
Manufacturer		Triad Magnetics
Series		Chassis Mount: World Series™
Packaging		Box
Part Status		Active
Size / Dimension		79.38mm L x 71.37mm W
Mounting Type		Chassis Mount
Type		Laminated Core
Weight		5.5 lbs (2.5 kg)
Termination Style		Solder, Quick Connect
Primary Winding(s)		Dual
Secondary Winding(s)		Dual
Power - Max		175VA
Voltage - Isolation		4000Vrms
Current - Output (Max)		Parallel 35A, Series 17.5A
Voltage - Primary		115V, 230V
Height - Seated (Max)		95.25mm
Voltage - Secondary (Full Load)		Parallel 5V, Series 10V
Center Tap		No

Documents & Media

RESOURCE TYPE		LINK
Datasheets		VPS10-17500
Datasheets		Standard Part Warranty Terms
Datasheets		RoHS Statement

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.4065
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 8

Can ship immediately.
