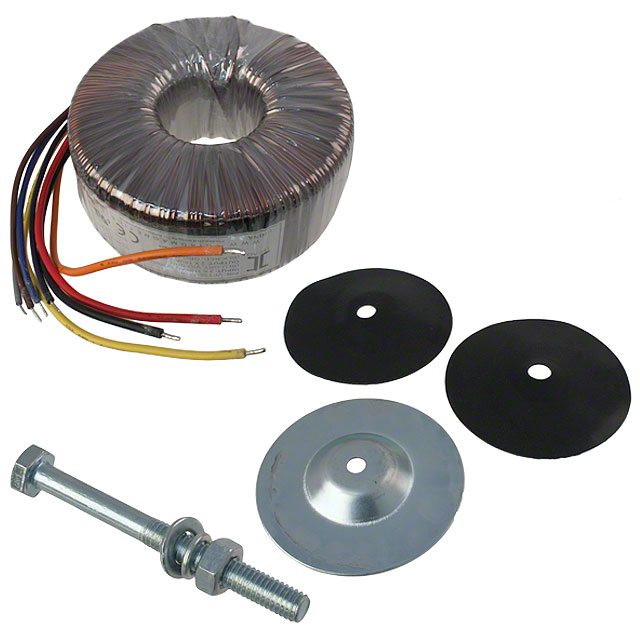

VPT36-4440

VPT36-4440

Part Number	VPT36-4440
Manufacturer	Triad Magnetics
Other Part Numbers	237-1348-ND VPT364440 237-1348
Description	PWR XFMR TOROIDAL 160VA CHAS MT
Manufacturer Standard Lead Time	19 weeks
Datasheet	Datasheet

Product Attributes

Category		Transformers Power Transformers
Manufacturer		Triad Magnetics
Series		Chassis Mount: World Series™
Packaging		Box
Part Status		Active
Size / Dimension		103.00mm Dia x 48.00mm W
Mounting Type		Chassis Mount
Type		Toroidal
Weight		3.6 lbs (1.6 kg)
Termination Style		Wire Leads
Primary Winding(s)		Dual
Secondary Winding(s)		Dual
Power - Max		160VA
Voltage - Isolation		4000Vrms
Current - Output (Max)		Parallel 8.88A, Series 4.44A
Voltage - Primary		115V, 230V
Height - Seated (Max)		52.0mm
Voltage - Secondary (Full Load)		Parallel 18V, Series 36V
Center Tap		No

Documents & Media

RESOURCE TYPE		LINK
Datasheets		VPT36-4440
Datasheets		Standard Part Warranty Terms
Datasheets		RoHS Statement
Datasheets		VPT Series Top

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.4065
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 10

Can ship immediately.
