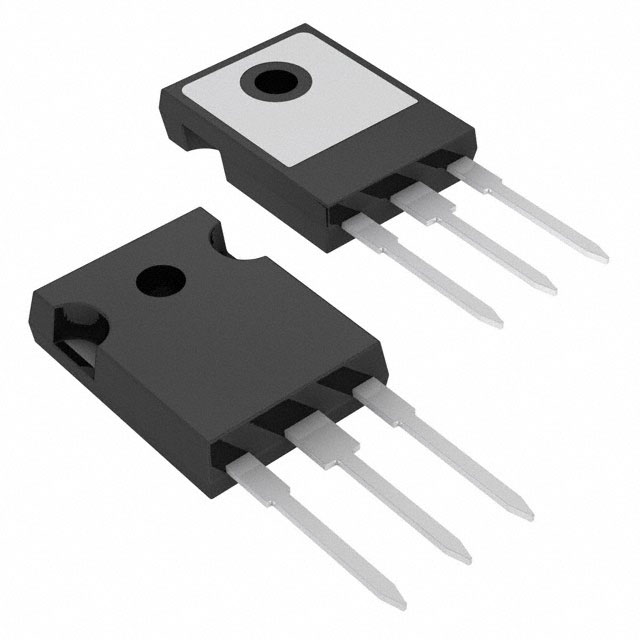

Part Number | VS-40TPS08-M3 |
---|---|
Manufacturer | Vishay General Semiconductor – Diodes Division |
Other Part Numbers | VS-40TPS08-M3-ND VS40TPS08M3 |
Description | SCR 800V 55A TO247AC |
Detailed Description | SCR 800 V 55 A Standard Recovery Through Hole TO-247AC |
Manufacturer Standard Lead Time | 20 weeks |
Category | ||
---|---|---|
Manufacturer | Vishay General Semiconductor – Diodes Division | |
Series | ||
Packaging | Tube | |
Part Status | Active | |
Package / Case | TO-247-3 | |
Mounting Type | Through Hole | |
SCR Type | Standard Recovery | |
Operating Temperature | -40°C ~ 125°C | |
Current - Hold (Ih) (Max) | 200 mA | |
Current - Gate Trigger (Igt) (Max) | 150 mA | |
Current - Non Rep. Surge 50, 60Hz (Itsm) | 500A @ 50Hz | |
Current - On State (It (AV)) (Max) | 35 A | |
Voltage - Gate Trigger (Vgt) (Max) | 2.5 V | |
Voltage - On State (Vtm) (Max) | 1.85 V | |
Current - Off State (Max) | 500 µA | |
Supplier Device Package | TO-247AC | |
Current - On State (It (RMS)) (Max) | 55 A | |
Voltage - Off State | 800 V |
RESOURCE TYPE | LINK |
---|
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8541.30.0080 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
QUANTITY | UNIT PRICE | EXT PRICE |
---|---|---|
1 | $6.54 | $6.54 |
25 | $5.18 | $129.50 |
100 | $4.44 | $444.00 |
500 | $3.95 | $1,975.00 |
1,000 | $3.38 | $3,380.00 |
2,000 | $3.18 | $6,360.00 |
