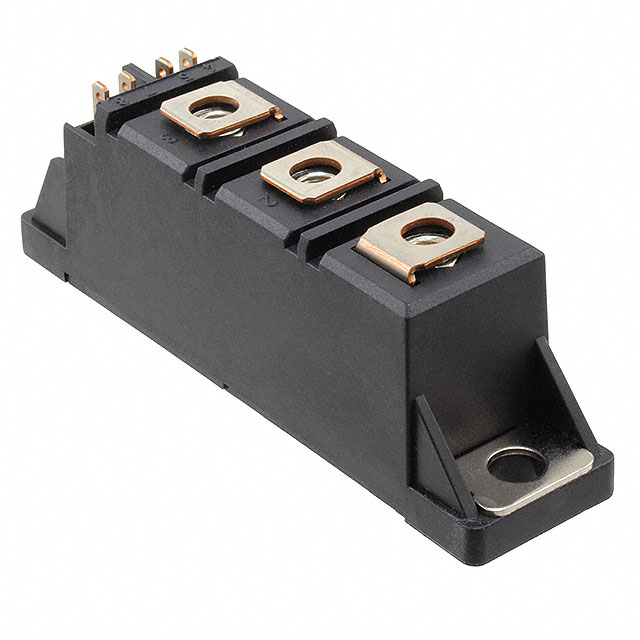

VS-VSKH105/06

Part Number
VS-VSKH105/06
Manufacturer Vishay General Semiconductor – Diodes Division
Other Part Numbers
112-VS-VSKH105/06-ND
VS-VSKH105/06-ND
112-VS-VSKH105/06
VSVSKH10506
Description MODULE DIODE 600V 105A ADD-A-PAK
Detailed Description SCR Module 600 V 235 A Series Connection - SCR/Diode Chassis Mount ADD-A-PAK (3)
Manufacturer Standard Lead Time 14 weeks

Product Attributes

Category
Manufacturer Vishay General Semiconductor – Diodes Division
Series
Packaging
Bulk
Part Status Active
Package / Case ADD-A-PAK (3)
Mounting Type Chassis Mount
Operating Temperature -40°C ~ 130°C (TJ)
Structure Series Connection - SCR/Diode
Current - Hold (Ih) (Max) 250 mA
Current - Gate Trigger (Igt) (Max) 150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 2000A, 2094A
Number of SCRs, Diodes 1 SCR, 1 Diode
Current - On State (It (AV)) (Max) 105 A
Voltage - Gate Trigger (Vgt) (Max) 2.5 V
Current - On State (It (RMS)) (Max) 235 A
Voltage - Off State 600 V

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.30.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 3

Can ship immediately.
