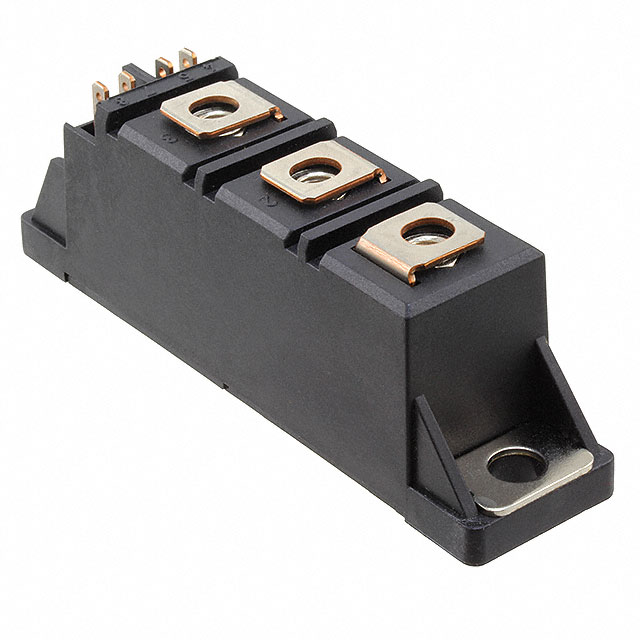

VS-VSKT91/12

VS-VSKT91/12

Part Number	VS-VSKT91/12
Manufacturer	Vishay General Semiconductor – Diodes Division
Other Part Numbers	VS-VSKT91/12-ND VSVSKT9112
Description	MODULE THYRISTOR 95A ADD-A-PAK
Detailed Description	SCR Module 1.2 kV 210 A Series Connection - All SCRs Chassis Mount ADD-A-PAK (3 + 4)
Manufacturer Standard Lead Time	28 weeks

Product Attributes

Category		Discrete Semiconductor Products Thyristors SCRs - Modules
Manufacturer		Vishay General Semiconductor – Diodes Division
Series
Packaging		Bulk
Part Status		Active
Package / Case		ADD-A-PAK (3 + 4)
Mounting Type		Chassis Mount
Operating Temperature		-40°C ~ 125°C (TJ)
Structure		Series Connection - All SCRs
Current - Hold (Ih) (Max)		250 mA
Current - Gate Trigger (Igt) (Max)		150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)		2000A, 2094A
Number of SCRs, Diodes		2 SCRs
Current - On State (It (AV)) (Max)		95 A
Voltage - Gate Trigger (Vgt) (Max)		2.5 V
Current - On State (It (RMS)) (Max)		210 A
Voltage - Off State		1.2 kV

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.30.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 7

Can ship immediately.
