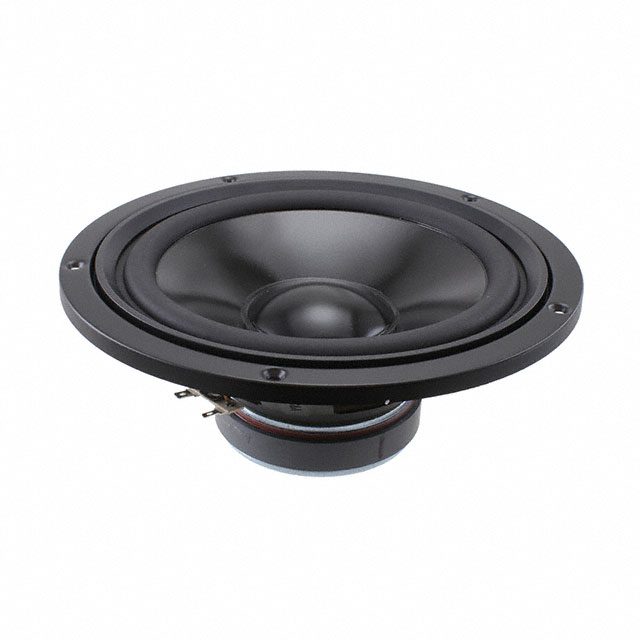

W 200 S - 8 OHM

W 200 S - 8 OHM

Part Number	W 200 S - 8 OHM
Manufacturer	VISATON
Other Part Numbers	2056-W200S-8OHM-ND 2056-W200S-8OHM
Description	SPEAKER 8OHM 75W TOP PORT 88DB
Detailed Description	8 Ohms General Purpose Speaker 75 W 30 Hz ~ 6 kHz Top Round
Manufacturer Standard Lead Time	5 weeks
Datasheet	Datasheet

Product Attributes

Category		Audio Products Speakers
Manufacturer		VISATON
Series
Packaging		Bulk
Part Status		Active
Size / Dimension		9.134" Dia (232.00mm)
Shape		Round
Type		General Purpose
Technology		Magnetic
Material - Cone		Paper
Termination		Quick Connect
Frequency - Self Resonant		30Hz
Port Location		Top
Height - Seated (Max)		3.740" (95.00mm)
Impedance		8 Ohms
Power - Max		115 W
Power - Rated		75 W
Frequency Range		30 Hz ~ 6 kHz
Efficiency - dBA		88.00
Efficiency - Testing		1W/1M
Efficiency - Type		Sound Pressure Level (SPL)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		W 200 S - 8 OHM

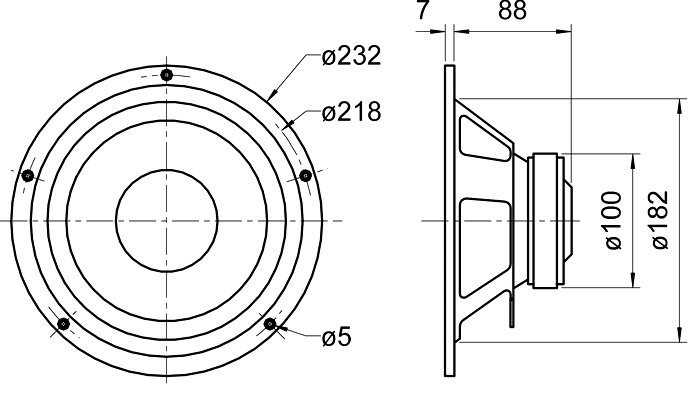

Datasheets		W 200 S Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8518.29.8000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 62
