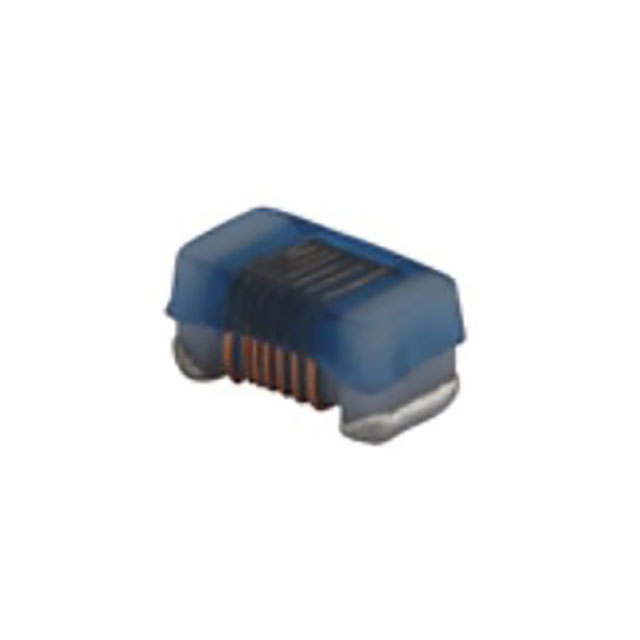

WCLA1005V1-3R9-R _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	WCLA1005V1-3R9-R
Manufacturer	PowerStor (Eaton)
Other Part Numbers	283-WCLA1005V1-3R9-RTR-ND -875-WCLA1005V1-3R9-RCT 283-WCLA1005V1-3R9-RTR
Description	FIXED IND 3.9NH 840MA 66MOHM SMD
Detailed Description	3.9 nH Unshielded Wirewound Inductor 840 mA 66mOhm Max 0402 (1005 Metric)
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		PowerStor (Eaton)
Series		WCLA1005V1
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±5%
Package / Case		0402 (1005 Metric)
Size / Dimension		0.047" L x 0.026" W (1.19mm x 0.66mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Wirewound
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		66mOhm Max
Q @ Freq		20 @ 250MHz
Frequency - Self Resonant		6GHz
Ratings		AEC-Q200
Inductance Frequency - Test		250 MHz
Supplier Device Package		0402
Height - Seated (Max)		0.024" (0.60mm)
Inductance		3.9 nH
Current Rating (Amps)		840 mA

RESOURCE TYPE		LINK
Datasheets		WCLA1005V1-3R9-R

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
