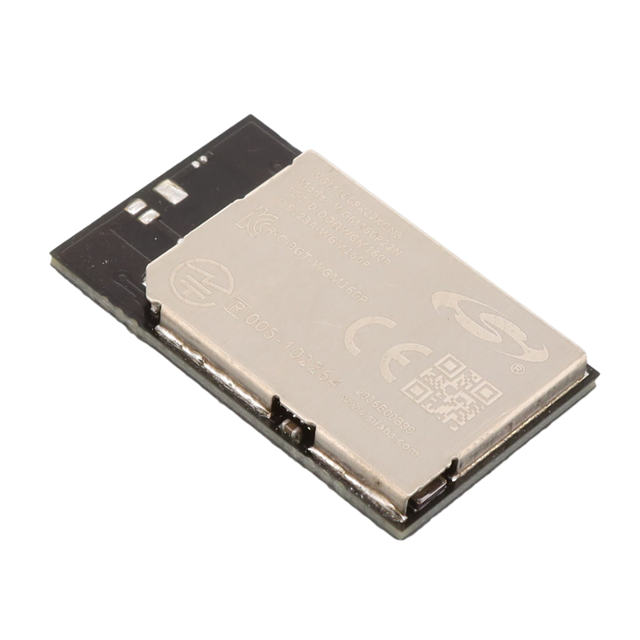

WGM160PX22KGA3 _ RF Transceiver Modules and Modems_RF and Wireless

Part Number	WGM160PX22KGA3
Manufacturer	Silicon Labs
Other Part Numbers	336-WGM160PX22KGA3-ND 336-WGM160PX22KGA3
Description	RF TXRX MODULE WIFI CHIP SMD
Detailed Description	WiFi 802.11b/g/n Transceiver Module 2.412GHz ~ 2.484GHz Integrated, Chip Surface Mount
Datasheet	Datasheet

Category		RF and Wireless RF Transceiver Modules and Modems
Manufacturer		Silicon Labs
Series		Wi-Fi®
Packaging		Strip
Part Status		Not For New Designs
Package / Case		55-SMD Module
Sensitivity		-95.5dBm
Mounting Type		Surface Mount
Frequency		2.412GHz ~ 2.484GHz
Memory Size		2MB Flash, 512kB RAM
Operating Temperature		-40°C ~ 85°C (TA)
Voltage - Supply		3V ~ 3.6V
Power - Output		16dBm
Data Rate		72.2Mbps
Protocol		802.11b/g/n
Current - Receiving		34.5mA ~ 38.5mA
Current - Transmitting		131.4mA ~ 141.3mA
Antenna Type		Integrated, Chip
RF Family/Standard		WiFi
Serial Interfaces		Ethernet, I2C, SPI, UART, USART, USB
DigiKey Programmable		Not Verified

ATTRIBUTE		DESCRIPTION
ECCN		5A992C
HTSUS		8517.62.0090
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.

Not recommended for new design, minimums may apply.
