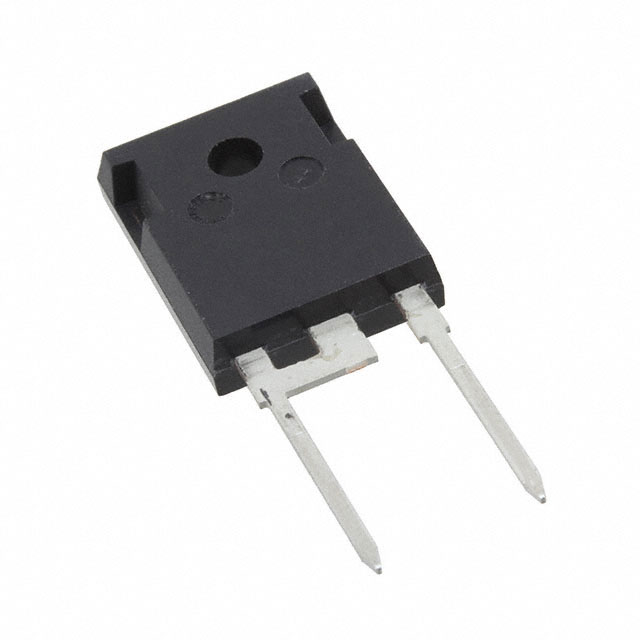

WNSC2D101200WQ

Part Number
WNSC2D101200WQ
Manufacturer WeEn Semiconductors Co., Ltd
Other Part Numbers
1740-WNSC2D101200WQ-ND
1740-WNSC2D101200WQ
934072187127
Description DIODE SIL CARB 1.2KV 10A TO247-2
Detailed Description Diode 1200 V 10A Through Hole TO-247-2
Manufacturer Standard Lead Time 8 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer WeEn Semiconductors Co., Ltd
Series
Packaging
Tube
Part Status Active
Package / Case TO-247-2
Mounting Type Through Hole
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Technology SiC (Silicon Carbide) Schottky
Capacitance @ Vr, F 490pF @ 1V, 1MHz
Current - Average Rectified (Io) 10A
Supplier Device Package TO-247-2
Operating Temperature - Junction 175°C
Voltage - DC Reverse (Vr) (Max) 1200 V
Voltage - Forward (Vf) (Max) @ If 1.65 V @ 10 A
Current - Reverse Leakage @ Vr 110 µA @ 1200 V

Documents & Media

RESOURCE TYPE LINK
Datasheets WNSC2D101200WQ

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status RoHS Compliant

In Stock: 2333

Can ship immediately.
