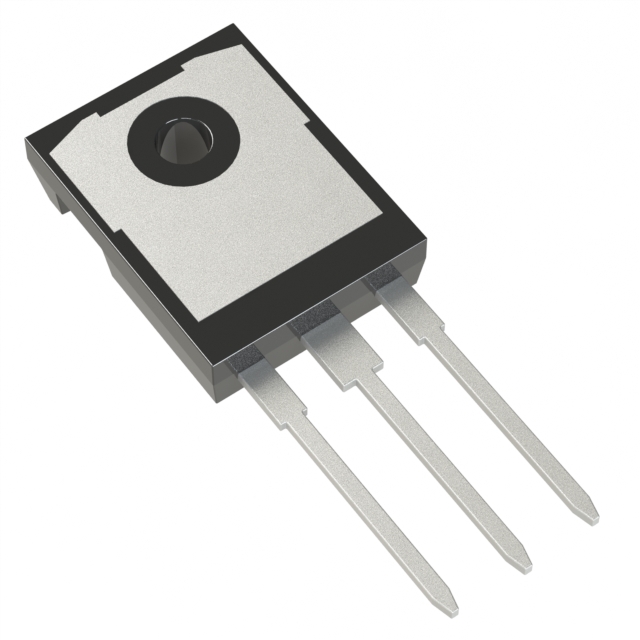

WNSC6D20650CW6Q

Part Number
WNSC6D20650CW6Q
Manufacturer WeEn Semiconductors Co., Ltd
Other Part Numbers
1740-WNSC6D20650CW6Q-ND
934072858127
1740-WNSC6D20650CW6Q
Description DIODE ARR SIC 650V 20A TO247-3
Detailed Description Diode Array 1 Pair Common Cathode 650 V 20A Through Hole TO-247-3
Manufacturer Standard Lead Time 8 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer WeEn Semiconductors Co., Ltd
Series
Packaging
Tube
Part Status Active
Package / Case TO-247-3
Mounting Type Through Hole
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Technology SiC (Silicon Carbide) Schottky
Diode Configuration 1 Pair Common Cathode
Current - Average Rectified (Io) (per Diode) 20A
Supplier Device Package TO-247-3
Operating Temperature - Junction 175°C
Voltage - DC Reverse (Vr) (Max) 650 V
Voltage - Forward (Vf) (Max) @ If 1.45 V @ 10 A
Current - Reverse Leakage @ Vr 50 µA @ 650 V

Documents & Media

RESOURCE TYPE LINK
Datasheets WNSC6D20650CW6Q
Datasheets Second Assembly Source 13/Feb/2023

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status ROHS3 Compliant

In Stock: 465

Can ship immediately.
