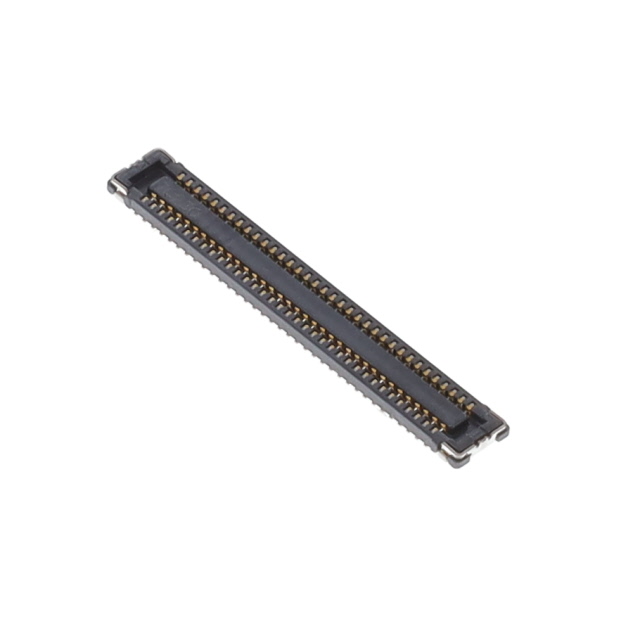

WP7B-S070VA1-R8000

WP7B-S070VA1-R8000

Part Number	WP7B-S070VA1-R8000
Manufacturer	JAE Electronics
Other Part Numbers	670-3057-2-ND 670-3057-1-ND 670-3057-6-ND WP7B-S070VA1-R8000-ND 670-3057-6 670-3057-2 670-3057-1
Description	CONN RCPT 70POS SMD GOLD
Detailed Description	70 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Manufacturer Standard Lead Time	15 weeks

Product Attributes

Category		Connectors, Interconnects Rectangular Connectors Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer		JAE Electronics
Series		WP7
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Solder Retention
Connector Type		Receptacle, Center Strip Contacts
Contact Finish		Gold
Mounting Type		Surface Mount
Number of Positions		70
Pitch		0.016" (0.40mm)
Height Above Board		0.028" (0.71mm)
Contact Finish Thickness		4.00µin (0.100µm)
Mated Stacking Heights		0.7mm
Number of Rows		2

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)

In Stock: 2113

Can ship immediately.
