WS.03.B.305151

WS.03.B.305151

Part Number	WS.03.B.305151
Manufacturer	Taoglas
Other Part Numbers	931-WS.03.B.305151-ND 931-WS.03.B.305151

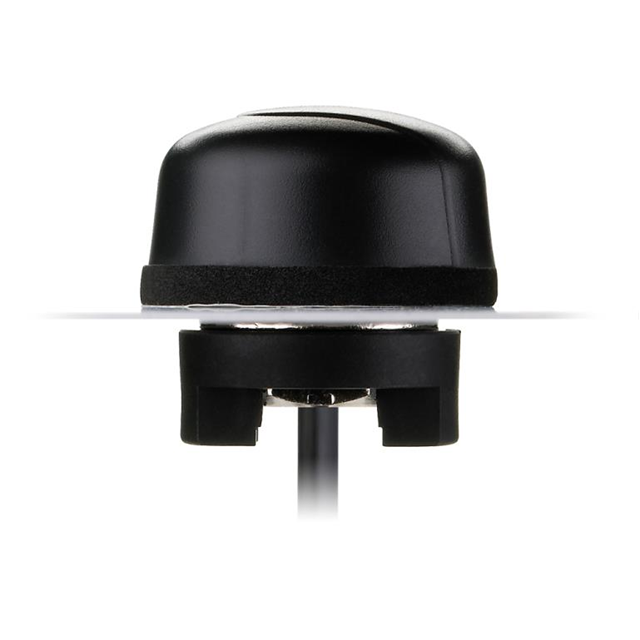

Description	HERCULES WI-FI EXTERNAL ANTENNA
Detailed Description	2.45GHz, 5.5GHz, 6.525GHz Wi-Fi Dome RF Antenna 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz 2.7dBi, 3.2dBi, 4.3dBi RP-SMA Male Panel Mount
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		Taoglas
Series		Hercules
Packaging		Bulk
Part Status		Active
Features		Cable - 5m
Mounting Type		Panel Mount
Frequency Range		2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
Applications		Wi-Fi
Gain		2.7dBi, 3.2dBi, 4.3dBi
Termination		RP-SMA Male
Number of Bands		3
Antenna Type		Dome
Height (Max)		1.142" (29.00mm)
Frequency Group		UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)		2.45GHz, 5.5GHz, 6.525GHz
RF Family/Standard		WiFi
Power - Max		10 W

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Taoglas Limited RoHS

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8517.71.0000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 137

Can ship immediately.
