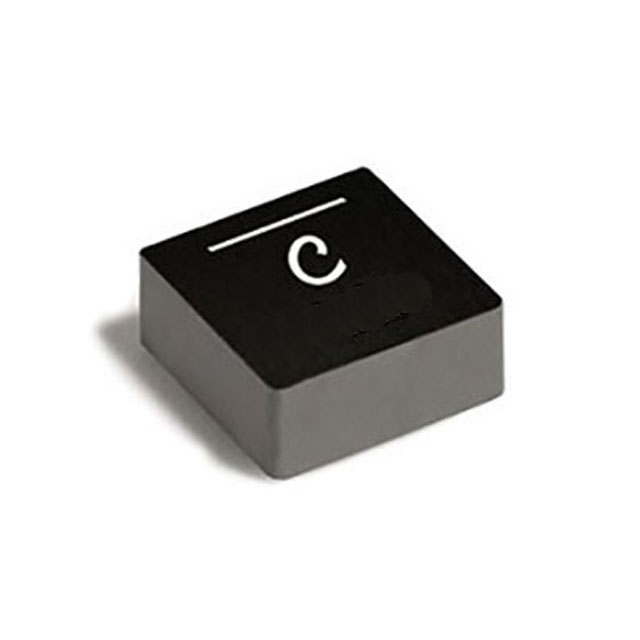

XGL4020-222MEC

Part Number
XGL4020-222MEC
Manufacturer COILCRAFT
Other Part Numbers
2457-XGL4020-222MEC-ND
2457-XGL4020-222ME_TR-ND
2457-XGL4020-222ME_
2457-XGL4020-222MEC
2457-XGL4020-222ME_-ND
Description FIXED IND 2.2UH 8.9A 21.5MOHM SM
Detailed Description 2.2 µH Shielded Molded Inductor 8.9 A 21.5mOhm Max 1616 (4040 Metric)
Datasheet Datasheet

Product Attributes

Category
Manufacturer COILCRAFT
Series
XGL4020
Packaging
Strip
Part Status Active
Tolerance ±20%
Package / Case 1616 (4040 Metric)
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Mounting Type Surface Mount
Shielding Shielded
Type Molded
Operating Temperature -40°C ~ 165°C
DC Resistance (DCR) 21.5mOhm Max
Frequency - Self Resonant 40MHz
Ratings AEC-Q200
Current - Saturation (Isat) 6.2A
Material - Core Metal Composite
Inductance Frequency - Test 1 MHz
Supplier Device Package 1616
Height - Seated (Max) 0.083" (2.10mm)
Inductance 2.2 µH
Current Rating (Amps) 8.9 A

Documents & Media

RESOURCE TYPE LINK
Datasheets XGL4020-222MEC

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
