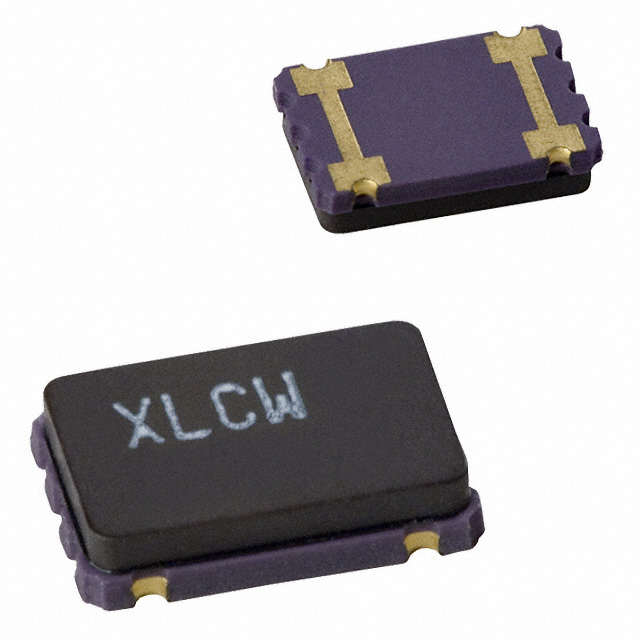

XL-1CE-010.0M

XL-1CE-010.0M

Part Number	XL-1CE-010.0M
Manufacturer	Connor Winfield
Other Part Numbers	222-XL-1CE-010.0MTR-ND 222-XL-1CE-010.0MCT-ND 222-XL-1CE-010.0MDKR-ND 222-XL-1CE-10.0000TR XL-1CE-010.0M 222-XL-1CE-010.0MCT XL-1CE-10.0000 222-XL-1CE-10.0000CT-ND 222-XL-1CE-10.0000TR-ND 222-XL-1CE-010.0MTR 222-XL-1CE-10.0000DKR Q11603280 222-XL-1CE-010.0MDKR XL-1CE-10.0000-ND 222-XL-1CE-10.0000DKR-ND 222-XL-1CE-10.0000CT
Description	CRYSTAL 10.0000MHZ 16PF SMD
Detailed Description	10 MHz ±100ppm Crystal 16pF 60 Ohms 4-SMD, No Lead
Manufacturer Standard Lead Time	18 weeks

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		Connor Winfield
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Load Capacitance		16pF
Size / Dimension		0.300" L x 0.200" W (7.62mm x 5.08mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-40°C ~ 85°C
Frequency Tolerance		±100ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.070" (1.77mm)
ESR (Equivalent Series Resistance)		60 Ohms
Frequency		10 MHz

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 450

Can ship immediately.
