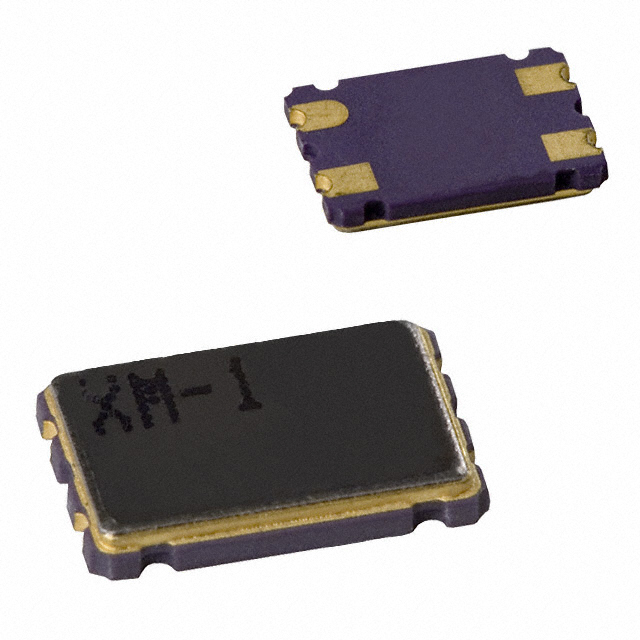

XM-1-012.0M

XM-1-012.0M

Part Number	XM-1-012.0M
Manufacturer	Connor Winfield
Other Part Numbers	CW422TR-ND CW422CT-ND CW422DKR-ND XM1012.0M CW422-NDL Q3804510 CW422-ND CW422TR CW422 CW422DKR CW422CT XM-1-12.0000
Description	CRYSTAL 12.0000MHZ 16PF SMD
Detailed Description	12 MHz ±50ppm Crystal 16pF 50 Ohms 4-SMD, No Lead
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		Connor Winfield
Series		XM-1
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Load Capacitance		16pF
Size / Dimension		0.295" L x 0.197" W (7.50mm x 5.00mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-10°C ~ 60°C
Frequency Stability		±50ppm
Frequency Tolerance		±50ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.051" (1.30mm)
ESR (Equivalent Series Resistance)		50 Ohms
Frequency		12 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		XM-1-012.0M
Datasheets		Vapor Phase Reflow
Datasheets		XM-1 Series
Datasheets		XM-1 Series Footprint

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1500

Can ship immediately.
