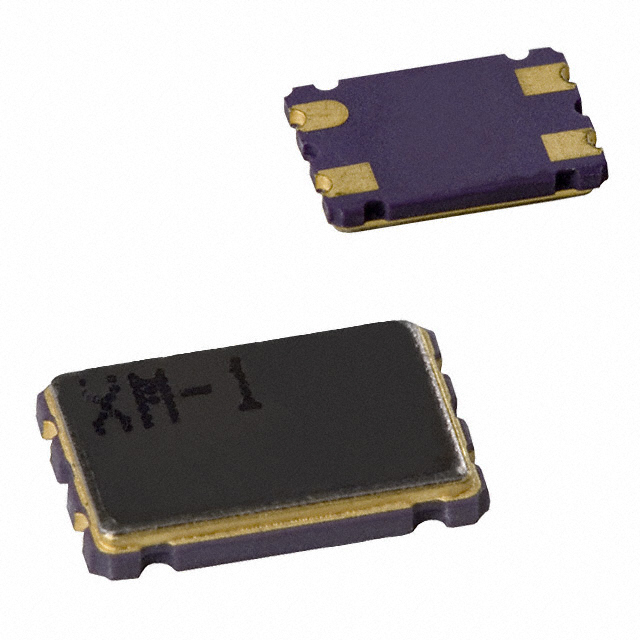

XM-1-018.432M

XM-1-018.432M

Part Number	XM-1-018.432M
Manufacturer	Connor Winfield
Other Part Numbers	CW424TR-ND CW424CT-ND CW424DKR-ND CW424-ND XM-1-18.4320 XM1018432M CW424CT XM1018.432M CW424 CW424TR CW424DKR
Description	CRYSTAL 18.4320MHZ 16PF SMD
Detailed Description	18.432 MHz ±50ppm Crystal 16pF 40 Ohms 4-SMD, No Lead
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		Connor Winfield
Series		XM-1
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Load Capacitance		16pF
Size / Dimension		0.295" L x 0.197" W (7.50mm x 5.00mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-10°C ~ 60°C
Frequency Stability		±50ppm
Frequency Tolerance		±50ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.051" (1.30mm)
ESR (Equivalent Series Resistance)		40 Ohms
Frequency		18.432 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		XM-1-018.432M
Datasheets		XM-1 Series

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 5

Can ship immediately.
