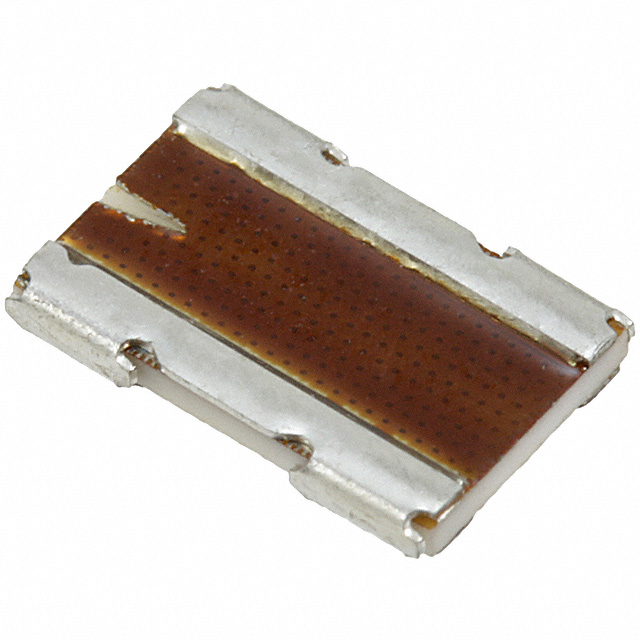

Y08560R50000D9W

Y08560R50000D9W

Part Number	Y08560R50000D9W
Manufacturer	VPG Foil Resistors
Other Part Numbers	Y0856-.5A-ND Y0856-.5A Q13412151 Y08560R50000D9W-CRL
Description	RES 0.5 OHM 1W 2516 WIDE
Detailed Description	500 mOhms ±0.5% 1W Chip Resistor Wide 2516 (6440 Metric), 1625 Current Sense, Moisture Resistant, Non-Inductive Metal Foil
Manufacturer Standard Lead Time	13 weeks

Product Attributes

Category		Resistors Chip Resistor - Surface Mount
Manufacturer		VPG Foil Resistors
Series		VCS1625P
Packaging		Tray
Part Status		Active
Power (Watts)		1W
Tolerance		±0.5%
Features		Current Sense, Moisture Resistant, Non-Inductive
Package / Case		Wide 2516 (6440 Metric), 1625
Temperature Coefficient		±2ppm/°C
Size / Dimension		0.160" L x 0.250" W (4.06mm x 6.35mm)
Composition		Metal Foil
Operating Temperature		-55°C ~ 150°C
Number of Terminations		4
Supplier Device Package		SMD
Height - Seated (Max)		0.040" (1.02mm)
Resistance		500 mOhms

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.21.0030
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1750

Can ship immediately.
