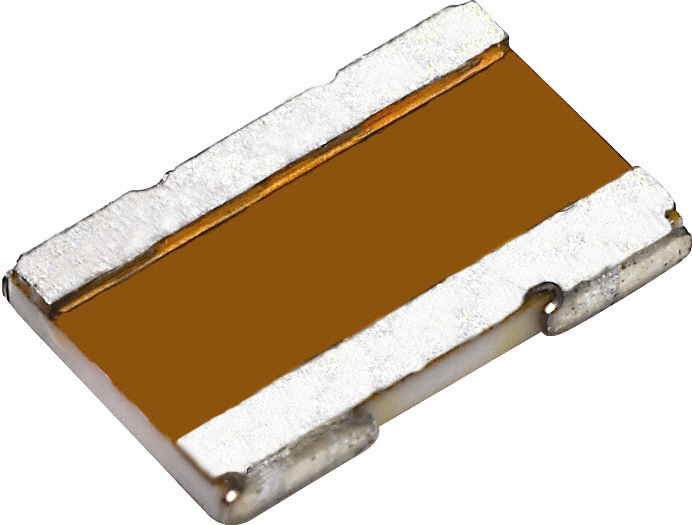

Y160610R0000D9W

Y160610R0000D9W

Part Number	Y160610R0000D9W
Manufacturer	VPG Foil Resistors
Other Part Numbers	804-1191-ND 804-1191
Description	RES SMD 10 OHM 0.5% 1W 2516 WIDE
Detailed Description	10 Ohms ±0.5% 1W Chip Resistor Wide 2516 (6440 Metric), 1625 Current Sense, Moisture Resistant, Non-Inductive Metal Foil
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Product Attributes

Category		Resistors Chip Resistor - Surface Mount
Manufacturer		VPG Foil Resistors
Series		VCS1625ZP
Packaging		Tray
Part Status		Active
Power (Watts)		1W
Tolerance		±0.5%
Features		Current Sense, Moisture Resistant, Non-Inductive
Package / Case		Wide 2516 (6440 Metric), 1625
Temperature Coefficient		±0.2ppm/°C
Size / Dimension		0.160" L x 0.250" W (4.06mm x 6.35mm)
Composition		Metal Foil
Operating Temperature		-55°C ~ 150°C
Number of Terminations		4
Supplier Device Package		SMD
Height - Seated (Max)		0.040" (1.02mm)
Resistance		10 Ohms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Y160610R0000D9W

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.21.0030
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 91

Can ship immediately.
