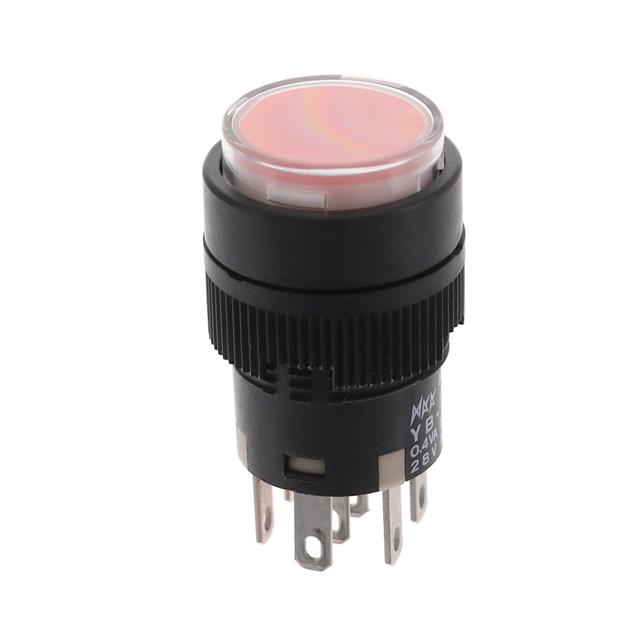

YB26CKG01-5C-JC

YB26CKG01-5C-JC

Part Number	YB26CKG01-5C-JC
Manufacturer	NKK Switches
Other Part Numbers	360-YB26CKG01-5C-JC-ND 3937-YB26CKG01-5C-JC 360-YB26CKG01-5C-JC
Description	SWITCH PB INCAND LED
Detailed Description	Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front
Datasheet	Datasheet

Product Attributes

Category		Switches Pushbutton Switches
Manufacturer		NKK Switches
Series		YB
Packaging		Bulk
Part Status		Active
Current Rating (Amps)		0.4VA (AC/DC)
Mounting Type		Panel Mount, Front
Circuit		DPDT
Type		Standard, Illuminated
Switch Function		On-On
Operating Temperature		-25°C ~ 50°C
Termination Style		Solder, Quick Connect - 0.110" (2.8mm)
Illumination Type, Color		LED, Red
Illumination Voltage (Nominal)		1.9 VDC
Actuator Type		Round, Button
Panel Cutout Dimensions		Circular - 16.00mm Dia
Color - Actuator/Cap		Clear (Red Filter/Diffuser)
Voltage Rating - AC		28 V
Voltage Rating - DC		28 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		YB26CKG01-5C-JC

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.50.9033
Moisture Sensitivity Level (MSL)		1 (Unlimited)

In Stock: 45

Can ship immediately.
