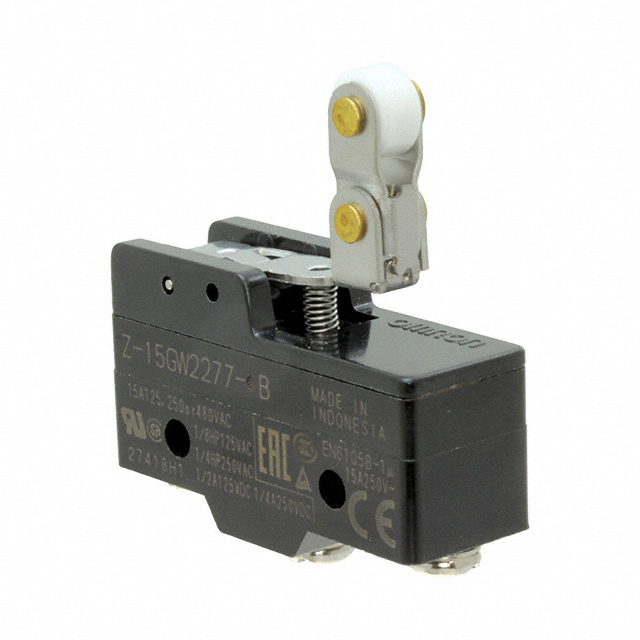

Part Number | Z-15GW2277-B |
---|---|
Manufacturer | Omron Automation |
Other Part Numbers | Z10609-ND Z15GW2277B Z-15GW2277-B-ND Z10609 |
Description | SWITCH SNAP ACTION SPDT 15A 125V |
Detailed Description | Switch SPDT Chassis Mount |
Manufacturer Standard Lead Time | 13 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Omron Automation | |
Series | Z | |
Packaging | Tray | |
Part Status | Active | |
Current Rating (Amps) | 15A (AC), 6A (DC) | |
Mounting Type | Chassis Mount | |
Circuit | SPDT | |
Switch Function | On-Mom | |
Operating Temperature | -25°C ~ 80°C | |
Termination Style | Screw Terminal | |
Actuator Type | Lever, Roller | |
Operating Force | 180gf | |
Ingress Protection | IP00 | |
Release Force | 50gf | |
Differential Travel | 0.031" (0.8mm) | |
Overtravel | 0.094" (2.4mm) | |
Operating Position | 1.625" (41.3mm) | |
Voltage Rating - AC | 125 V | |
Voltage Rating - DC | 30 V |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | Z-15GW2277-B |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.50.9040 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
QUANTITY | UNIT PRICE | EXT PRICE |
---|---|---|
1 | $25.62 | $25.62 |
10 | $19.21 | $192.10 |
25 | $17.61 | $440.25 |
40 | $16.54 | $661.60 |
80 | $15.48 | $1,238.40 |
230 | $14.94 | $3,436.20 |
440 | $14.41 | $6,340.40 |
