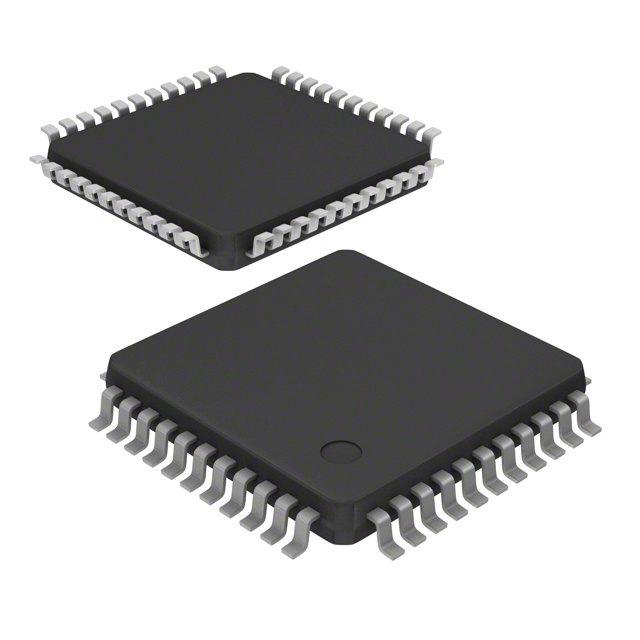

Z8F6481AN024XK2247 _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	Z8F6481AN024XK2247
Manufacturer	Zilog / Littelfuse
Other Part Numbers	269-5026-ND 269-5026
Description	IC MCU 8BIT 64KB FLASH 44LQFP
Detailed Description	eZ8 Z8 Encore! XP® Microcontroller IC 8-Bit 24MHz 64KB (64K x 8) FLASH 44-LQFP
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		Zilog / Littelfuse
Series		Z8 Encore! XP®
Packaging		Tray
Part Status		Active
Package / Case		44-LQFP
Mounting Type		Surface Mount
Speed		24MHz
Program Memory Size		64KB (64K x 8)
RAM Size		3.75K x 8
Operating Temperature		-40°C ~ 85°C (TA)
Oscillator Type		Internal
Program Memory Type		FLASH
Core Processor		eZ8
Data Converters		A/D 10x12b; D/A 1x12b
Core Size		8-Bit
Voltage - Supply (Vcc/Vdd)		1.8V ~ 3.6V
Connectivity		DALI, DMX, I2C, LINbus, SPI, UART/USART, USB
Peripherals		DMA, LVD, POR, PWM, WDT
Supplier Device Package		44-LQFP
Number of I/O		36
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK
Datasheets		Z8F6481AN024XK2247
Datasheets		F6482 Product Brief
Datasheets		Zilog RoHS
Datasheets		Z8F6482 New Revision 14/Jan/2022
Datasheets		Z8F6482 Revision 07/Oct/2021
Datasheets		Mult Dev Site Qual 20/Nov/2019
Datasheets		F6482 Series API Programmer Manual
Datasheets		Z8 Encore! XP® Errata, F6482 Series

ATTRIBUTE		DESCRIPTION
ECCN		5A992C
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
