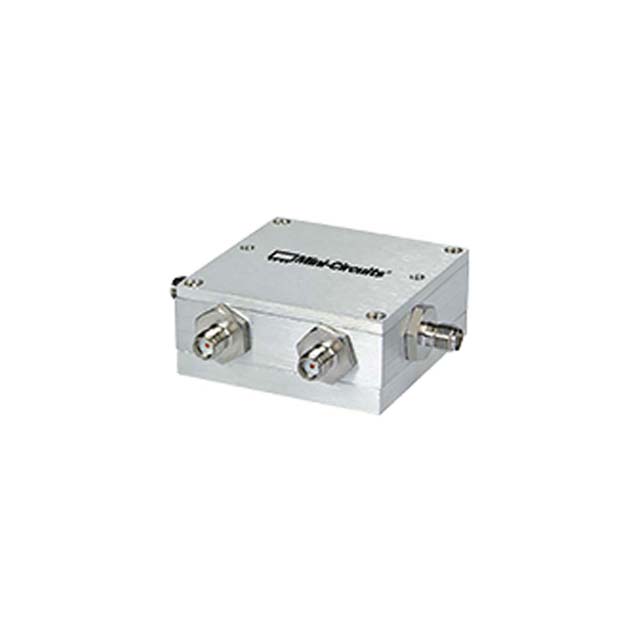

ZABDC20-252H-S+

ZABDC20-252H-S+

Part Number	ZABDC20-252H-S+
Manufacturer	Mini-Circuits
Other Part Numbers	3157-ZABDC20-252H-S+-ND 3157-ZABDC20-252H-S+
Description	BI-DIR COUP / SMA / ROHS
Detailed Description	RF Directional Coupler General Purpose 800MHz ~ 2.5GHz 23 ± 1dB 100W Module, SMA Connectors
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Directional Coupler
Manufacturer		Mini-Circuits
Series
Packaging		Tray
Part Status		Active
Package / Case		Module, SMA Connectors
Frequency		800MHz ~ 2.5GHz
Applications		General Purpose
Power - Max		100W
Coupling Factor		23 ± 1dB
Coupler Type		Standard
Return Loss		49.29dB

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ZABDC20-252H-S+

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8517.79.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 8

Can ship immediately.
