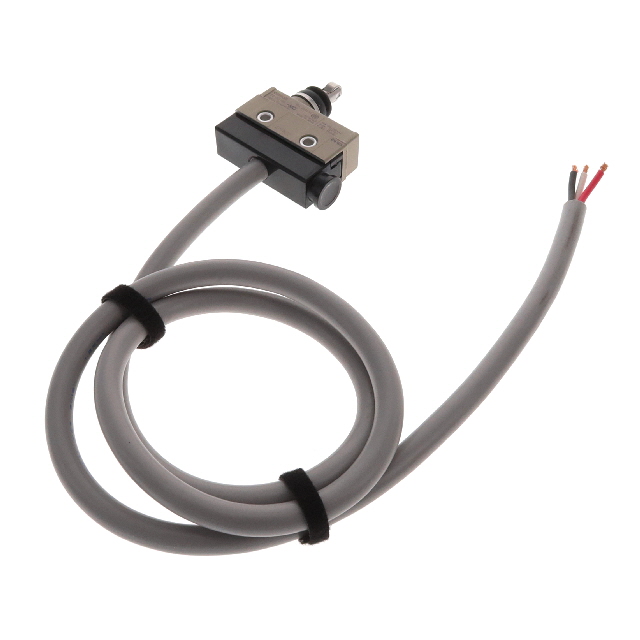

Part Number | ZC-N2155-MD-VCT-1M |
---|---|
Manufacturer | Omron Automation |
Other Part Numbers | Z10639-ND ZC-N2155-MD-VCT-1M-ND ZCN2155MDVCT1M Z10639 |
Description | SWITCH SNAP ACTION SPDT 10A 125V |
Detailed Description | Switch SPDT Chassis Mount |
Manufacturer Standard Lead Time | 13 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Omron Automation | |
Series | ZC | |
Packaging | Bulk | |
Part Status | Active | |
Features | Cable Length 1m | |
Current Rating (Amps) | 10A (AC), 6A (DC) | |
Mounting Type | Chassis Mount | |
Circuit | SPDT | |
Switch Function | On-Mom | |
Operating Temperature | -10°C ~ 80°C | |
Termination Style | Cable Leads | |
Actuator Type | Roller Plunger | |
Operating Force | 700gf | |
Ingress Protection | IP67 - Dust Tight, Waterproof | |
Release Force | 170gf | |
Pretravel | 0.060" (1.5mm) | |
Differential Travel | 0.008" (0.2mm) | |
Overtravel | 0.098" (2.5mm) | |
Operating Position | 1.866" (47.4mm) | |
Voltage Rating - AC | 125 V | |
Voltage Rating - DC | 30 V |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | ZC-N2155-MD-VCT-1M |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.50.9055 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
RoHS Status | RoHS Compliant |
QUANTITY | UNIT PRICE | EXT PRICE |
---|---|---|
1 | $158.76 | $158.76 |
10 | $149.69 | $1,496.90 |
