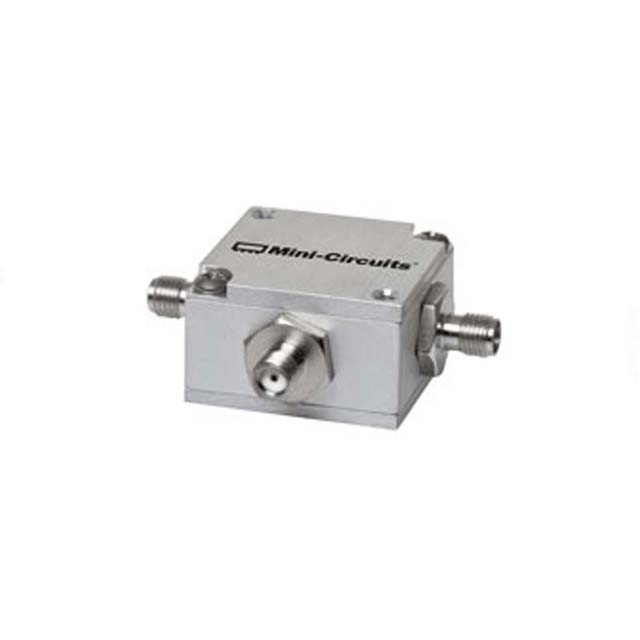

ZFDC-10-5-S+

ZFDC-10-5-S+

Part Number	ZFDC-10-5-S+
Manufacturer	Mini-Circuits
Other Part Numbers	3157-ZFDC-10-5-S+-ND 3157-ZFDC-10-5-S+
Description	DIR COUP / SMA ROHS
Detailed Description	RF Directional Coupler General Purpose 1MHz ~ 2GHz 10.8 ± 0.5dB 500mW Module, SMA Connectors
Manufacturer Standard Lead Time	9 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Directional Coupler
Manufacturer		Mini-Circuits
Series
Packaging		Tray
Part Status		Active
Package / Case		Module, SMA Connectors
Frequency		1MHz ~ 2GHz
Applications		General Purpose
Power - Max		500mW
Coupling Factor		10.8 ± 0.5dB
Coupler Type		Standard
Return Loss		31.26dB

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ZFDC-10-5-S+

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 2

Can ship immediately.
