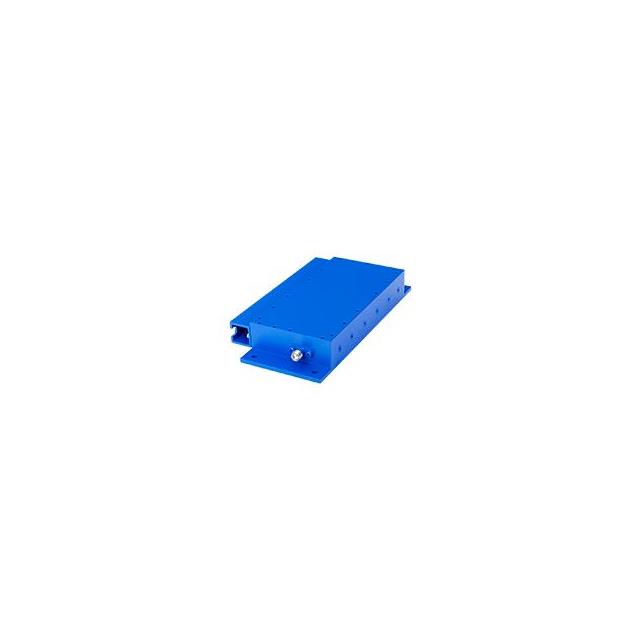

ZVBP-1227R6-S+

ZVBP-1227R6-S+

Part Number	ZVBP-1227R6-S+
Manufacturer	Mini-Circuits
Other Part Numbers	3157-ZVBP-1227R6-S+-ND 3157-ZVBP-1227R6-S+
Description	RF FILTER BANDPASS 12.276GHZ MOD
Detailed Description	12.276GHz Center Frequency Band Pass RF Filter (Radio Frequency) 50MHz Bandwidth 1dB Module
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters RF Filters
Manufacturer		Mini-Circuits
Series		ZVBP-1227R6-S+
Packaging		Tray
Part Status		Active
Package / Case		Module
Filter Type		Band Pass
Size / Dimension		5.750" L x 2.935" W (146.04mm x 74.55mm)
Mounting Type		Chassis Mount
Frequency		12.276GHz Center
Insertion Loss		1dB
Bandwidth		50MHz
Height (Max)		0.886" (22.50mm)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ZVBP-1227R6-S+

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant

In Stock: 2

Can ship immediately.
