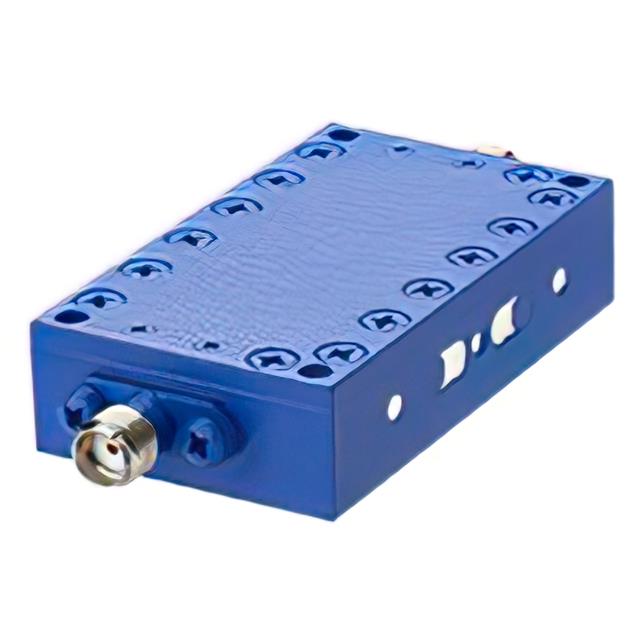

ZVBP-3R25G-S+

ZVBP-3R25G-S+

Part Number	ZVBP-3R25G-S+
Manufacturer	Mini-Circuits
Other Part Numbers	3157-ZVBP-3R25G-S+-ND 3157-ZVBP-3R25G-S+
Description	RF FILTER BAND PASS 3.25GHZ MOD
Detailed Description	3.25GHz Center Frequency Band Pass RF Filter (Radio Frequency) 500MHz Bandwidth 0.7dB Module, SMA Connectors
Manufacturer Standard Lead Time	23 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters RF Filters
Manufacturer		Mini-Circuits
Series		ZVBP
Packaging		Tray
Part Status		Active
Package / Case		Module, SMA Connectors
Filter Type		Band Pass
Size / Dimension		1.988" L x 1.161" W (50.50mm x 29.50mm)
Mounting Type		Chassis Mount
Frequency		3.25GHz Center
Insertion Loss		0.7dB
Bandwidth		500MHz
Height (Max)		0.580" (14.74mm)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ZVBP-3R25G-S+

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

In Stock: 16

Can ship immediately.
