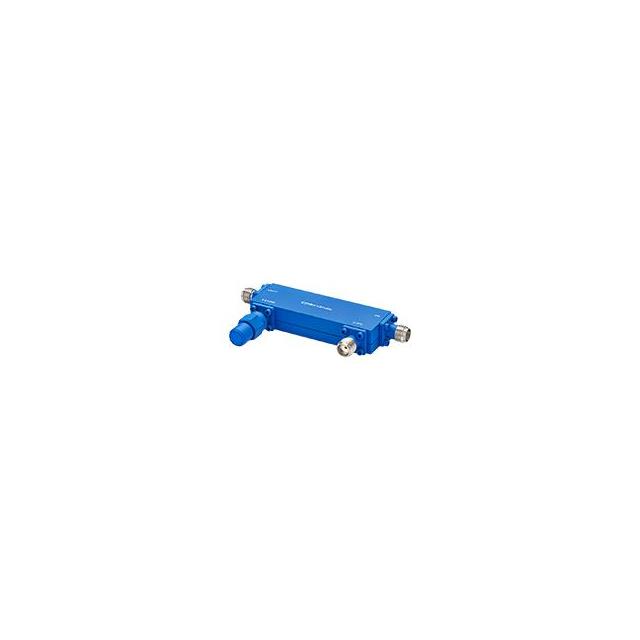

ZVDC-20-0123+

ZVDC-20-0123+

Part Number	ZVDC-20-0123+
Manufacturer	Mini-Circuits
Other Part Numbers	3157-ZVDC-20-0123+-ND 3157-ZVDC-20-0123+
Description	20 DB DIR COUP, 1000 - 20000 MHZ
Detailed Description	RF Directional Coupler General Purpose 1GHz ~ 20GHz 20 ± 1dB Module, SMA Connectors
Manufacturer Standard Lead Time	9 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Directional Coupler
Manufacturer		Mini-Circuits
Series
Packaging		Tray
Part Status		Active
Package / Case		Module, SMA Connectors
Frequency		1GHz ~ 20GHz
Applications		General Purpose
Coupling Factor		20 ± 1dB
Coupler Type		Standard
Return Loss		26dB
Supplier Device Package		Module

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ZVDC-20-0123+

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant

In Stock: 4

Can ship immediately.
