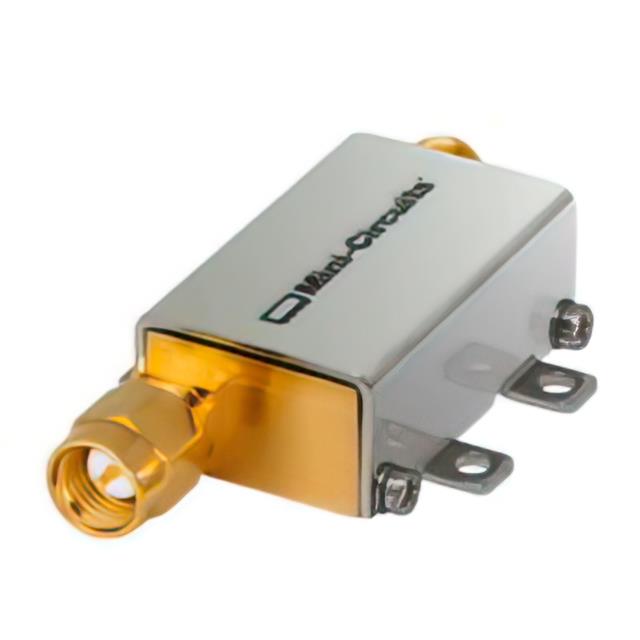

ZX75BP-A1060-S+

ZX75BP-A1060-S+

Part Number	ZX75BP-A1060-S+
Manufacturer	Mini-Circuits
Other Part Numbers	3157-ZX75BP-A1060-S+-ND 3157-ZX75BP-A1060-S+
Description	RF FILTER BAND PASS 1.06GHZ MOD
Detailed Description	1.06GHz Center Frequency Band Pass RF Filter (Radio Frequency) 90MHz Bandwidth 2dB Module, SMA Connectors
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters RF Filters
Manufacturer		Mini-Circuits
Series		ZX75BP
Packaging		Tray
Part Status		Active
Package / Case		Module, SMA Connectors
Filter Type		Band Pass
Size / Dimension		1.200" L x 0.750" W (30.48mm x 19.05mm)
Mounting Type		Chassis Mount
Frequency		1.06GHz Center
Insertion Loss		2dB
Bandwidth		90MHz
Height (Max)		0.490" (12.45mm)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ZX75BP-A1060-S+

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

In Stock: 14

Can ship immediately.
